- Part Number LM2852YMXA-3.3
- Manufacturer Texas Instruments
- Pin Count 15
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - PWP0014A
- Released Date Apr 16, 2015
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
LM2852YMXA-3.3 Details
-
Manufacturer Part Number:
LM2852YMXA-3.3
-
Brand Name:
Texas Instruments
-
Pbfree Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
Part Package Code:
TSSOP
-
Package Description:
TSSOP-14
-
Pin Count:
14
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.60
-
Manufacturer:
Texas Instruments
-
YTEOL:
0
LM2852YMXA-3.3 Frequently Asked Questions (FAQs)
-
The maximum input voltage that can be applied to the LM2852YMXA-3.3 is 15V, but it's recommended to keep it below 12V for optimal performance and to prevent overheating.
-
The LM2852YMXA-3.3 is rated for operation up to 125°C, but it's recommended to derate the output current and input voltage to ensure reliable operation at high temperatures. Consult the datasheet for thermal derating curves.
-
To ensure stability, make sure to follow the recommended layout and component selection guidelines in the datasheet, including the use of a 10uF ceramic capacitor at the output and a 1uF ceramic capacitor at the input. Additionally, keep the input and output capacitors close to the device and use short, wide traces to minimize inductance.
-
Yes, the LM2852YMXA-3.3 is suitable for battery-powered devices due to its low quiescent current (IQ) of 50uA and low dropout voltage (VDO) of 300mV. However, consider the device's power consumption and battery life requirements to ensure optimal performance.
-
To calculate the power dissipation, use the formula: Pd = (Vin - Vout) x Iout + Vin x IQ. Where Vin is the input voltage, Vout is the output voltage, Iout is the output current, and IQ is the quiescent current. Consult the datasheet for more information on power dissipation and thermal management.
Trust Checks
Community Provided
System Verified
Community Approved
LM2852YMXA-3.3 Overview

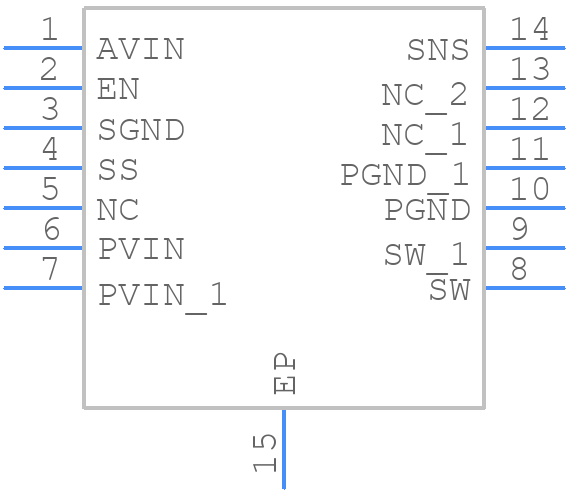

Use the download button to access the LM2852YMXA-3.3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM285,
or try a keyword search, such as Switching Regulator or Controllers
