A good PCB layout for the LM2853MH-2.5/NOPB involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. Additionally, it's recommended to use a separate analog ground plane and to keep the power and ground traces separate.
To ensure stability, it's essential to follow the recommended component values and PCB layout guidelines. Additionally, the output capacitor should be chosen to ensure a minimum equivalent series resistance (ESR) of 0.1 ohms, and the input capacitor should be a low-ESR type. It's also recommended to add a 10nF capacitor between the VCC and GND pins to improve stability.
The LM2853MH-2.5/NOPB has an operating ambient temperature range of -40°C to 125°C. However, the device's performance and reliability may degrade if operated at the extreme ends of this range for extended periods.
Yes, the LM2853MH-2.5/NOPB is qualified for automotive and high-reliability applications. It meets the requirements of the AEC-Q100 standard for automotive applications and is suitable for use in high-reliability systems.
The power dissipation of the LM2853MH-2.5/NOPB can be calculated using the formula: Pd = (VIN - VOUT) x IOUT + (VIN x IQ), where VIN is the input voltage, VOUT is the output voltage, IOUT is the output current, and IQ is the quiescent current. The maximum power dissipation is 1.4W.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM2853MH-2.5/NOPB Overview

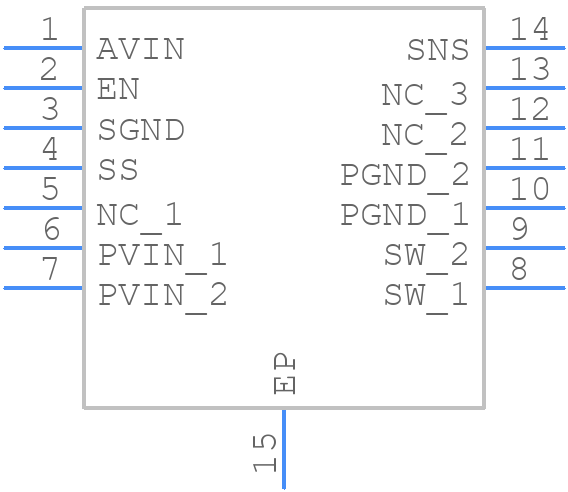

Use the download button to access the LM2853MH-2.5/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM285,
or try a keyword search, such as Switching Regulator or Controllers
