Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general guidelines for switching regulator layout, such as keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing trace lengths and widths.
To ensure the LM2853MHX-1.0/NOPB operates within its SOA, follow the guidelines in the datasheet for input voltage, output current, and power dissipation. Additionally, consider the thermal characteristics of the device and ensure proper heat sinking and thermal management.
The maximum output current of the LM2853MHX-1.0/NOPB is 500mA, but this is dependent on the input voltage, output voltage, and thermal conditions. Be sure to check the datasheet for specific current limits and thermal derating curves.
The LM2853MHX-1.0/NOPB has an operating junction temperature range of -40°C to 125°C, but the device's performance and reliability may degrade at high temperatures. Be sure to check the datasheet for thermal derating curves and consider using thermal management techniques such as heat sinking or cooling.
To troubleshoot issues with the LM2853MHX-1.0/NOPB, start by checking the input voltage, output voltage, and output current. Verify that the device is properly configured and that the PCB layout meets the recommended guidelines. Use an oscilloscope to check for oscillation or instability, and consult the datasheet and application notes for troubleshooting guidance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM2853MHX-1.0/NOPB Overview

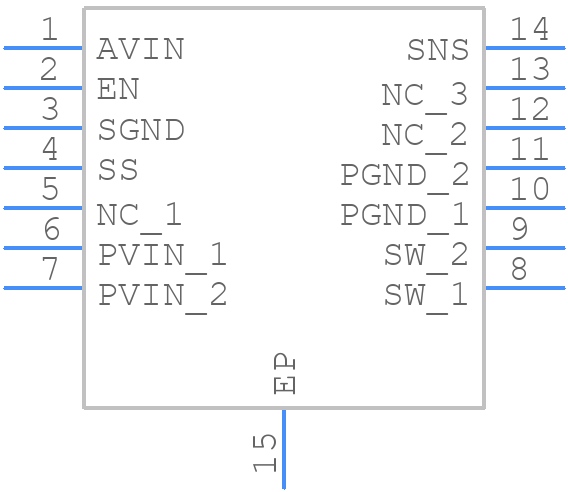

Use the download button to access the LM2853MHX-1.0/NOPB schematic symbol, PCB footprint, and 3D model.
