A good PCB layout for the LM2854MH-1000/NOPB involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. Additionally, it's recommended to use a separate analog ground plane and to keep the power and ground traces separate.
To ensure stability, it's essential to follow the recommended component values and PCB layout guidelines. Additionally, ensure that the input and output capacitors meet the recommended specifications, and that the device is operated within its recommended operating conditions.
The LM2854MH-1000/NOPB is rated for operation from -40°C to 125°C. However, the device's performance and reliability may degrade if operated at the extreme ends of this range for extended periods.
Yes, the LM2854MH-1000/NOPB is a high-reliability device that meets the requirements of various aerospace and defense standards. However, it's essential to consult with Texas Instruments' application engineers to ensure that the device meets the specific requirements of your application.
To troubleshoot issues, start by verifying that the device is operated within its recommended operating conditions and that the PCB layout meets the recommended guidelines. Check for signs of overheating, and ensure that the input and output capacitors are of the correct type and value. If issues persist, consult the datasheet and application notes, or contact Texas Instruments' technical support.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM2854MH-1000/NOPB Overview

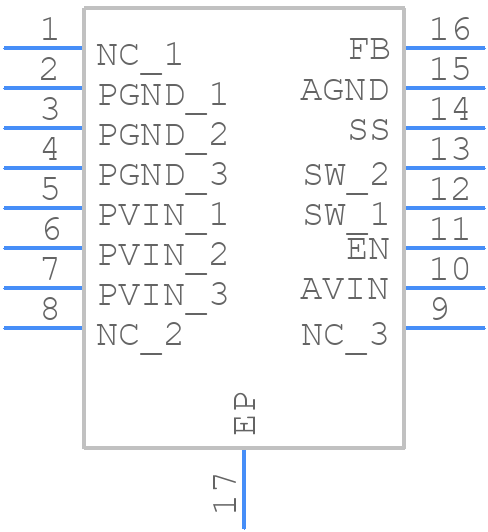

Use the download button to access the LM2854MH-1000/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM285,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
