LM2854MH-500/NOPB - Texas Instruments

Description: 4A 500 kHz / 1 MHz Synchronous SIMPLE SWITCHER® Buck Regulator

Download LM2854MH-500/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

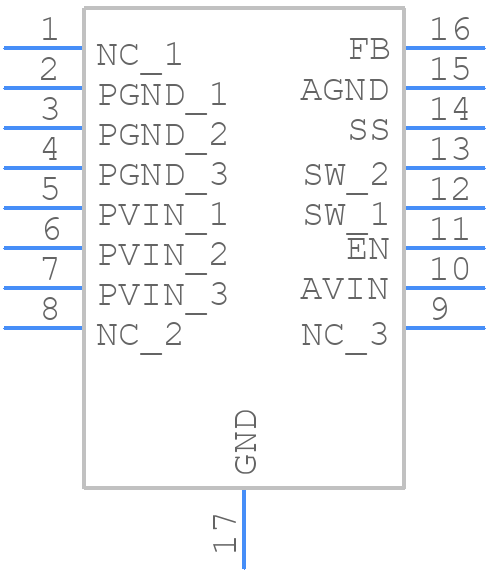

Symbol
LM2854MH-500/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LM2854MH-500/NOPB - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - LM2854MH-500/NOPB
click to zoom
3D Models
LM2854MH-500/NOPB - Texas Instruments - 3D model - Small Outline Packages - LM2854MH-500/NOPB
click to zoom

LM2854MH-500/NOPB Details

  • Manufacturer Part Number:

    LM2854MH-500/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Pin Count:

    16

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    2.95 V

  • Input Voltage-Nom:

    5 V

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    4 A

  • Output Voltage-Max:

    5 V

  • Output Voltage-Min:

    0.8 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    1000 kHz

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

LM2854MH-500/NOPB Frequently Asked Questions (FAQs)

  • A good PCB layout for the LM2854MH-500/NOPB should include a solid ground plane, wide power traces, and a thermal relief pattern under the device to facilitate heat dissipation. TI provides a recommended PCB layout in the datasheet.
  • To ensure stability, use a minimum output capacitance of 10uF, and ensure that the output capacitor has a low ESR (Equivalent Series Resistance). Additionally, use a feedback resistor (RFB) with a value between 1kΩ to 10kΩ to stabilize the output voltage.
  • The LM2854MH-500/NOPB can handle a maximum input voltage of 15V, but it's recommended to operate within the specified input voltage range of 4.5V to 12V for optimal performance and reliability.
  • The LM2854MH-500/NOPB is rated for operation up to 125°C, but it's essential to ensure proper thermal management, such as using a heat sink or a thermal interface material, to prevent overheating and ensure reliable operation.
  • The power dissipation of the LM2854MH-500/NOPB can be calculated using the formula: Pd = (Vin - Vout) x Iout, where Vin is the input voltage, Vout is the output voltage, and Iout is the output current. Ensure that the calculated power dissipation is within the device's specified power rating.
