LM2902FV-E2 - ROHM Semiconductor

Description: Ground Sense Operational Amplifier SSOP-B14 PACKAGE

Download LM2902FV-E2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

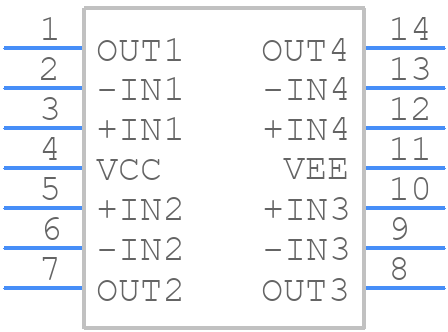

Symbol
LM2902FV-E2 - ROHM Semiconductor - PCB symbol
click to zoom
PCB Footprints
LM2902FV-E2 - ROHM Semiconductor PCB footprint - Small Outline Packages - Small Outline Packages - SSOP-B14 *
click to zoom
3D Models
LM2902FV-E2 - ROHM Semiconductor - 3D model - Small Outline Packages - SSOP-B14 *
click to zoom

LM2902FV-E2 Details

  • Manufacturer Part Number:

    LM2902FV-E2

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Date Of Intro:

    2016-08-03

  • Manufacturer:

    ROHM Semiconductor

  • YTEOL:

    5.35

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Average Bias Current-Max (IIB):

    0.3 µA

  • Common-mode Reject Ratio-Nom:

    80 dB

  • Input Offset Voltage-Max:

    5000 µV

  • JESD-30 Code:

    R-PDSO-G14

  • Length:

    5 mm

  • Number of Functions:

    4

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, LOW PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Seated Height-Max:

    1.35 mm

  • Slew Rate-Nom:

    0.3 V/us

  • Supply Voltage Limit-Max:

    36 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Unity Gain BW-Nom:

    800

  • Width:

    4.4 mm

LM2902FV-E2 Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the LM2902FV-E2 is 4.75V to 16V, although it can operate up to 18V with reduced performance.
  • To ensure stability, it's recommended to use a capacitor with a value of at least 10uF between the input pin and ground, and a capacitor with a value of at least 22uF between the output pin and ground.
  • The maximum output current that the LM2902FV-E2 can provide is 1A, but it's recommended to limit the output current to 500mA for continuous operation to ensure reliability.
  • To protect the LM2902FV-E2 from overheating, ensure that the device is mounted on a heat sink with a thermal resistance of less than 10°C/W, and that the ambient temperature is kept below 70°C.
  • While the LM2902FV-E2 can operate up to 125°C, it's not recommended to use it in high-temperature environments above 85°C without proper heat sinking and derating the output current.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LM2902FV-E2 Overview

Use the download button to access the LM2902FV-E2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM290, or try a keyword search, such as Operational Amplifiers
