LM2917M/NOPB - Texas Instruments

Description: Frequency to Voltage Converter

Download LM2917M/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

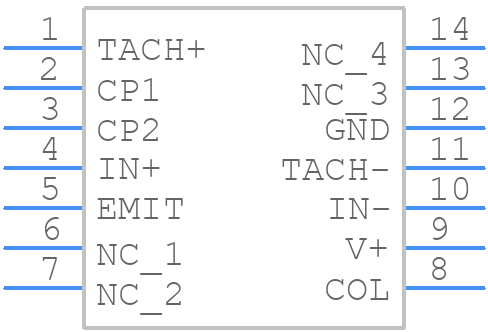

LM2917M/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LM2917M/NOPB - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - D (-R-PDSO-G14)
click to zoom
3D Models
LM2917M/NOPB - Texas Instruments - 3D model - Small Outline Packages - D (-R-PDSO-G14)
click to zoom

LM2917M/NOPB Details

  • Manufacturer Part Number:

    LM2917M/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    14

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Converter Type:

    VOLTAGE TO FREQUENCY CONVERTER

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e3

  • Length:

    8.65 mm

  • Linearity Error-Max (EL):

    1%

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Positive Input Voltage-Max:

    28 V

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    6 mA

  • Supply Voltage-Max:

    28 V

  • Supply Voltage-Nom:

    12 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

LM2917M/NOPB Frequently Asked Questions (FAQs)

  • The maximum input voltage that can be applied to the LM2917M/NOPB is 40V. Exceeding this voltage can cause damage to the device.
  • To ensure accurate voltage regulation, it is essential to use a stable input voltage, decouple the input and output with capacitors, and ensure the output capacitor is of sufficient value (at least 10uF) and ESR (Equivalent Series Resistance) to maintain stability.
  • The minimum input voltage required for the LM2917M/NOPB to operate is 7.5V. Operating the device below this voltage may result in unstable output or failure to regulate.
  • The LM2917M/NOPB is rated for operation up to 125°C. However, it is essential to ensure proper heat sinking and thermal management to prevent overheating, especially in high-temperature environments.
  • To protect the LM2917M/NOPB from input voltage transients, use a transient voltage suppressor (TVS) diode or a voltage clamp circuit at the input to limit voltage spikes and ensure the input voltage remains within the recommended operating range.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LM2917M/NOPB Overview

Use the download button to access the LM2917M/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM291, or try a keyword search, such as Analog Special Function Converters

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
