LM2917N-8/NOPB - Texas Instruments

Description: Frequency to Voltage Converter

Download LM2917N-8/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

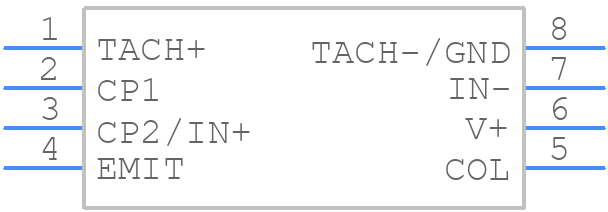

LM2917N-8/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LM2917N-8/NOPB - Texas Instruments PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - P (R-PDIP-T8)
click to zoom
3D Models
LM2917N-8/NOPB - Texas Instruments - 3D model - Dual-In-Line Packages - P (R-PDIP-T8)
click to zoom

LM2917N-8/NOPB Details

  • Manufacturer Part Number:

    LM2917N-8/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DIP

  • Pin Count:

    8

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Converter Type:

    VOLTAGE TO FREQUENCY CONVERTER

  • JESD-30 Code:

    R-PDIP-T8

  • JESD-609 Code:

    e4

  • Length:

    9.59 mm

  • Linearity Error-Max (EL):

    1%

  • Moisture Sensitivity Level:

    1

  • Negative Supply Voltage-Min:

    -28 V

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP8,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Positive Input Voltage-Max:

    28 V

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    5.08 mm

  • Supply Current-Max:

    6 mA

  • Supply Voltage-Max:

    28 V

  • Supply Voltage-Nom:

    12 V

  • Surface Mount:

    NO

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

LM2917N-8/NOPB Frequently Asked Questions (FAQs)

  • The maximum input voltage that can be applied to the LM2917N-8/NOPB is 40V, but it's recommended to operate within the specified input voltage range of 8V to 40V for optimal performance.
  • To ensure the LM2917N-8/NOPB operates within its specified temperature range of -40°C to 125°C, provide adequate heat sinking, avoid overheating, and ensure good airflow around the device.
  • The capacitor connected between the VCC and GND pins is a decoupling capacitor, which helps to filter out noise and ripple on the input voltage, ensuring stable operation of the LM2917N-8/NOPB.
  • Yes, the LM2917N-8/NOPB is suitable for high-reliability applications, as it's built with a robust design and has undergone rigorous testing to ensure its reliability and performance.
  • To troubleshoot issues with the LM2917N-8/NOPB, check the input voltage, output voltage, and current draw. Verify that the device is properly connected and that the input voltage is within the specified range. Consult the datasheet and application notes for guidance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LM2917N-8/NOPB Overview

Use the download button to access the LM2917N-8/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM291, or try a keyword search, such as Analog Special Function Converters
