LM2936HVMA-5.0 - Texas Instruments

Description: Linear voltage regulator,LM2936HVMA-5.0

Download LM2936HVMA-5.0 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

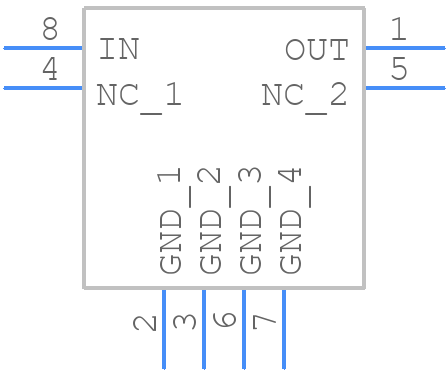

LM2936HVMA-5.0 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LM2936HVMA-5.0 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - +soic d
click to zoom
3D Models
LM2936HVMA-5.0 - Texas Instruments - 3D model - Small Outline Packages - +soic d
click to zoom

LM2936HVMA-5.0 Details

  • Manufacturer Part Number:

    LM2936HVMA-5.0

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    SOIC-8

  • Pin Count:

    8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Adjustability:

    FIXED

  • Dropout Voltage1-Max:

    0.4 V

  • Dropout Voltage1-Nom:

    0.2 V

  • Input Voltage Absolute-Max:

    60 V

  • Input Voltage-Max:

    60 V

  • Input Voltage-Min:

    6 V

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e0

  • Length:

    4.9 mm

  • Line Regulation-Max:

    0.035%

  • Load Regulation-Max:

    0.03%

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature TJ-Max:

    150 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current1-Max:

    0.05 A

  • Output Voltage1-Max:

    5.15 V

  • Output Voltage1-Min:

    4.85 V

  • Output Voltage1-Nom:

    5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TUBE

  • Peak Reflow Temperature (Cel):

    235

  • Qualification Status:

    Not Qualified

  • Regulator Type:

    FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    1.75 mm

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Terminal Finish:

    Tin/Lead (Sn/Pb)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Voltage Tolerance-Max:

    3%

  • Width:

    3.9 mm

LM2936HVMA-5.0 Frequently Asked Questions (FAQs)

  • The maximum input voltage that can be applied to the LM2936HVMA-5.0 is 40V, but it's recommended to operate within the specified input voltage range of 5.5V to 36V for optimal performance and reliability.
  • To ensure the stability of the output voltage, it's essential to use a suitable output capacitor with a low equivalent series resistance (ESR) and a sufficient capacitance value. A minimum capacitance value of 10uF is recommended, and the capacitor should be placed as close to the output pin as possible.
  • The maximum output current that the LM2936HVMA-5.0 can deliver is 500mA. However, the actual output current may be limited by the input voltage, output voltage, and ambient temperature. It's essential to check the device's thermal and electrical specifications to ensure reliable operation.
  • To protect the LM2936HVMA-5.0 from input voltage transients and spikes, it's recommended to use a transient voltage suppressor (TVS) diode or a voltage clamp circuit at the input. Additionally, a capacitor with a suitable voltage rating can be used to filter out high-frequency noise and transients.
  • The thermal shutdown temperature of the LM2936HVMA-5.0 is typically around 150°C to 160°C. When the device temperature exceeds this threshold, it will shut down to prevent damage. The device will automatically restart when the temperature drops below the thermal shutdown threshold.
