The maximum input voltage that can be applied to the LM2936QMX-5.0/NOPB is 26V, but it's recommended to operate within the specified input voltage range of 5.5V to 15V for optimal performance and reliability.
The LM2936QMX-5.0/NOPB is a low-dropout linear voltage regulator, but it's not designed for high-current applications. The maximum output current is 500mA, and the device may overheat or go into thermal shutdown if the output current exceeds this limit. For high-current applications, consider using a switching regulator or a high-current linear regulator.
To ensure the stability of the output voltage, make sure to use a suitable output capacitor with a minimum value of 10uF and an ESR (Equivalent Series Resistance) of less than 5 ohms. Additionally, keep the input and output capacitors close to the device and use short, wide traces to minimize inductance and resistance.
The LM2936QMX-5.0/NOPB is an automotive-qualified device, but it's essential to ensure that the device meets the specific requirements of your automotive application. Check the device's AEC-Q100 qualification and the recommended operating conditions to ensure it meets your application's needs.
The LM2936QMX-5.0/NOPB has an operating junction temperature range of -40°C to 125°C, but the device's performance and reliability may degrade at high temperatures. Ensure that the device is operated within the recommended temperature range, and consider using thermal management techniques, such as heat sinks or thermal interfaces, to maintain a safe operating temperature.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM2936QMX-5.0/NOPB Overview

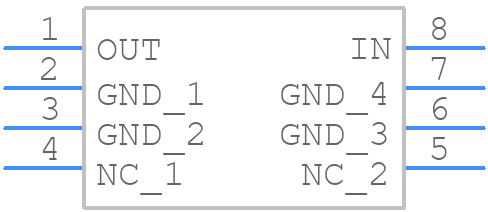

Use the download button to access the LM2936QMX-5.0/NOPB schematic symbol, PCB footprint, and 3D model.
