LM293H/NOPB - Texas Instruments

Description: Low Power Low Offset Voltage Dual Comparator

Download LM293H/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

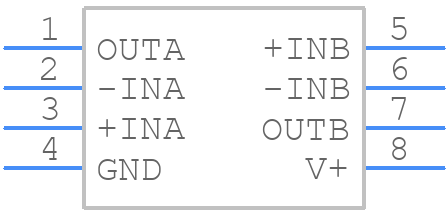

Symbol
LM293H/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LM293H/NOPB - Texas Instruments PCB footprint - Other - Other - LMC (O-MBCY-W8)_2020
click to zoom
3D Models
LM293H/NOPB - Texas Instruments - 3D model - Other - LMC (O-MBCY-W8)_2020
click to zoom

LM293H/NOPB Details

  • Manufacturer Part Number:

    LM293H/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    BCY

  • Pin Count:

    8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Amplifier Type:

    COMPARATOR

  • Average Bias Current-Max (IIB):

    0.4 µA

  • Bias Current-Max (IIB) @25C:

    0.25 µA

  • Input Offset Voltage-Max:

    5000 µV

  • JESD-30 Code:

    O-MBCY-W8

  • Length:

    9.08 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Output Type:

    OPEN-COLLECTOR; OPEN-DRAIN

  • Package Body Material:

    METAL

  • Package Code:

    TO-99

  • Package Equivalence Code:

    CAN8,.2

  • Package Shape:

    ROUND

  • Package Style:

    CYLINDRICAL

  • Qualification Status:

    Not Qualified

  • Response Time-Nom:

    1300 ns

  • Seated Height-Max:

    5.72 mm

  • Subcategory:

    Comparator

  • Supply Current-Max:

    1 mA

  • Supply Voltage Limit-Max:

    36 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    NO

  • Technology:

    BIPOLAR

  • Temperature Grade:

    OTHER

  • Terminal Form:

    WIRE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    BOTTOM

  • Width:

    9.08 mm

LM293H/NOPB Frequently Asked Questions (FAQs)

  • The LM293H can operate from -40°C to 125°C, but the maximum junction temperature (TJ) should not exceed 150°C.
  • While the LM293H can handle up to 1A of output current, it's not recommended for high-current applications due to thermal limitations. Consider using a heat sink or a more suitable regulator for high-current applications.
  • To ensure stable and accurate output voltage, make sure to use a suitable output capacitor (e.g., 10uF) and a minimum load current of 5mA. Also, keep the input voltage within the recommended range and avoid noise and ripple on the input.
  • No, the LM293H is not designed as a dropout regulator. It has a minimum dropout voltage of around 2V, which means the input voltage must be at least 2V higher than the output voltage. For dropout regulator applications, consider using a different device.
  • To protect the LM293H from input voltage transients and surges, consider adding a transient voltage suppressor (TVS) or a voltage clamp diode at the input. Also, ensure the input capacitor is rated for the maximum input voltage.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LM293H/NOPB Overview

Use the download button to access the LM293H/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM293, or try a keyword search, such as Comparators

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
