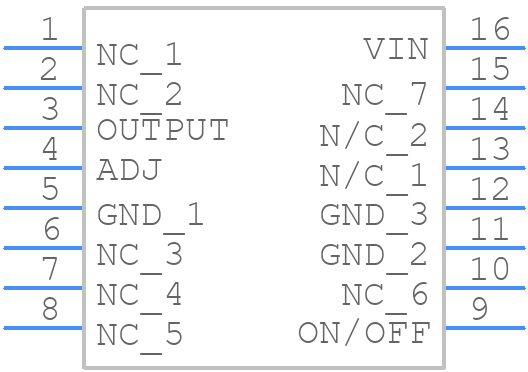

LM2941GW/883 - Texas Instruments

LM2941GW/883 Details

• Manufacturer Part Number:

  LM2941GW/883

• Brand Name:

  Texas Instruments

• Pbfree Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  SOIC

• Pin Count:

  16

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.90

• Manufacturer:

  Texas Instruments

• YTEOL:

  15

• Adjustability:

  ADJUSTABLE

• Dropout Voltage1-Max:

  1 V

• Dropout Voltage1-Nom:

  0.5 V

• Input Voltage-Max:

  26 V

• Input Voltage-Min:

  6 V

• JESD-30 Code:

  R-CDSO-G16

• JESD-609 Code:

  e0

• Length:

  9.91 mm

• Moisture Sensitivity Level:

  1

• Number of Functions:

  1

• Number of Outputs:

  1

• Number of Terminals:

  16

• Operating Temperature TJ-Max:

  150 °C

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -55 °C

• Output Current1-Max:

  1 A

• Output Voltage1-Max:

  20 V

• Output Voltage1-Min:

  5 V

• Package Body Material:

  CERAMIC, METAL-SEALED COFIRED

• Package Code:

  SOP

• Package Equivalence Code:

  SOP16,.4

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Qualification Status:

  Not Qualified

• Regulator Type:

  ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR

• Screening Level:

  MIL-STD-883

• Seated Height-Max:

  2.03 mm

• Surface Mount:

  YES

• Technology:

  BIPOLAR

• Terminal Finish:

  Tin/Lead (Sn/Pb)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  DUAL

• Total Dose:

  100k Rad(Si) V

• Voltage Tolerance-Max:

  5%

• Width:

  6.35 mm
