A good PCB layout for the LM2991GW-QML involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. Additionally, it's recommended to use a separate analog ground plane and to keep the power and ground traces separate.
To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Additionally, ensure that the output capacitor has a low equivalent series resistance (ESR) and that the input capacitor is properly bypassed. Also, avoid using capacitors with high ESL (Equivalent Series Inductance) values.
The LM2991GW-QML can handle input voltages up to 40V, but it's recommended to operate within the specified input voltage range of 7V to 36V for optimal performance and reliability.
The LM2991GW-QML is rated for operation up to 125°C, but it's recommended to derate the output current and input voltage at high temperatures to ensure reliability. Additionally, ensure that the device is properly heat-sinked and that the PCB is designed to handle high temperatures.
To protect the LM2991GW-QML from input voltage transients and surges, use a TVS (Transient Voltage Suppressor) diode or a voltage clamp circuit at the input. Additionally, ensure that the input capacitor is properly sized and rated for the maximum input voltage.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM2991GW-QML Overview

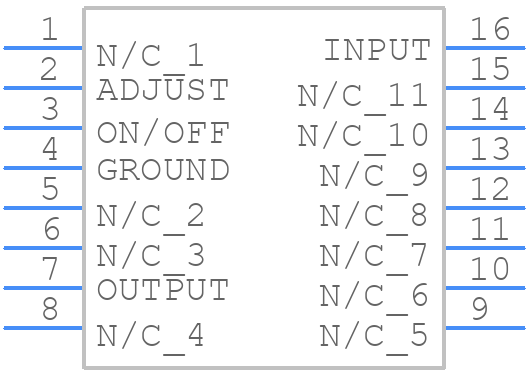

Use the download button to access the LM2991GW-QML schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM299,
or try a keyword search, such as Linear Regulator ICs
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
