- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for LM3086N
- Part Number LM3086N
- Manufacturer Texas Instruments
- Pin Count 14
- Part Category Integrated Circuit
- Package Category Dual-In-Line Packages
- Footprint Name Dual-In-Line Packages - N14A-ren1
- Released Date Feb 10, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
LM3086N Details
-
Manufacturer Part Number:
LM3086N
-
Rohs Code:
No
-
Part Life Cycle Code:
Obsolete
-
Package Description:
IN-LINE, R-PDIP-T14
-
Reach Compliance Code:
Unknown
-
ECCN Code:
EAR99
-
HTS Code:
8541.21.00.75
-
Manufacturer:
Texas Instruments
-
YTEOL:
0
-
Additional Feature:
LOW NOISE
-
Collector Current-Max (IC):
0.05 A
LM3086N Frequently Asked Questions (FAQs)
-
The LM3086N can handle input voltages up to 35V, but it's recommended to keep the input voltage at least 2V above the output voltage to ensure proper regulation.
-
To ensure stability, a minimum output capacitance of 10uF is recommended, and the ESR (Equivalent Series Resistance) of the capacitor should be less than 5 ohms.
-
The LM3086N is designed for low-current applications, and its maximum output current is 1.5A. If you need higher currents, consider using a different voltage regulator or adding an external pass transistor.
-
The LM3086N has a built-in thermal shutdown, but it's still important to provide adequate heat sinking, especially in high-power applications. A heat sink with a thermal resistance of less than 20°C/W is recommended.
-
The LM3086N is a linear voltage regulator, not a switching regulator. It's not suitable for use in switching power supplies, and using it in such an application may lead to instability or damage to the device.
Trust Checks
Expert Contribution
System Verified
Community Approved
LM3086N Overview

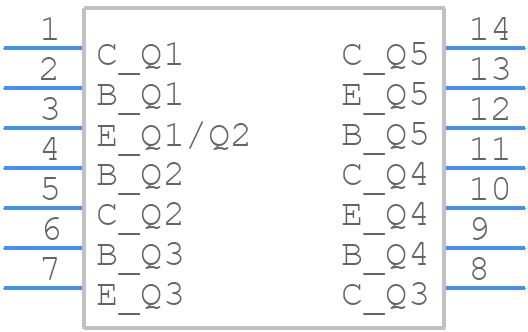

Use the download button to access the LM3086N schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM308,
or try a keyword search, such as RF Small Signal Bipolar Transistors
