Texas Instruments provides a recommended PCB layout in the datasheet, but it's also important to follow general best practices for switching regulator layout, such as keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing trace lengths and widths.
To ensure stability, make sure to follow the datasheet's guidelines for component selection, such as using a suitable output capacitor with a low ESR, and a feedback resistor with a high impedance. Additionally, ensure that the input voltage is within the recommended range and that the output is not overloaded.
The LM3102TL-1/NOPB has an operating junction temperature range of -40°C to 125°C, but the maximum ambient temperature range depends on the specific application and the thermal design of the system. It's recommended to follow the thermal design guidelines in the datasheet and to ensure that the IC is properly heat-sinked.
The LM3102TL-1/NOPB is a commercial-grade device, but Texas Instruments offers other versions of the LM3102 with enhanced reliability and automotive-grade options, such as the LM3102QTL-1/NOPB. It's recommended to consult with Texas Instruments or a qualified distributor to determine the best device for a specific high-reliability or automotive application.
To troubleshoot issues with the LM3102TL-1/NOPB, start by reviewing the datasheet and application notes, and checking the PCB layout and component selection. Use oscilloscopes and other diagnostic tools to measure the input and output voltages, currents, and temperatures. Consult with Texas Instruments' technical support or a qualified engineer if the issue persists.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM3102TL-1/NOPB Overview

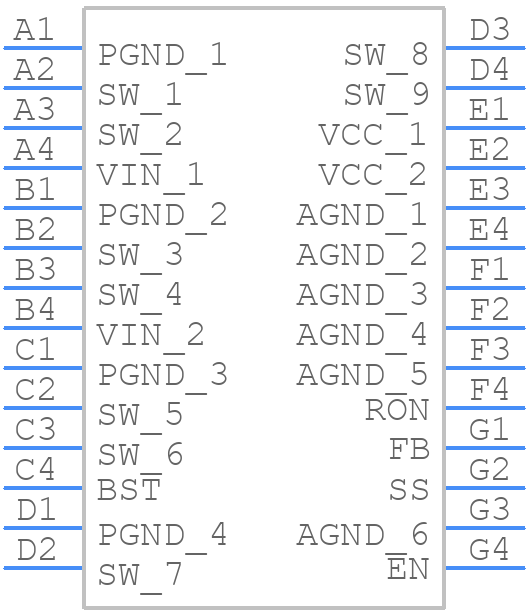

Use the download button to access the LM3102TL-1/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM310,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
