A good PCB layout for the LM3103MHX/NOPB involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. Additionally, it's recommended to use a separate analog ground plane and to keep the power supply traces away from the analog signals.
To ensure stability, it's essential to follow the recommended component values and PCB layout guidelines. Additionally, the input and output capacitors should be selected based on the specific application requirements, and the device should be operated within its recommended operating conditions.
The LM3103MHX/NOPB is rated for operation from -40°C to 125°C, but the maximum ambient temperature range depends on the specific application and the device's power dissipation. It's essential to ensure that the device does not exceed its maximum junction temperature (150°C) to prevent damage or malfunction.
Yes, the LM3103MHX/NOPB is qualified for automotive and high-reliability applications. It meets the requirements of the AEC-Q100 standard for automotive applications and is suitable for use in harsh environments.
To troubleshoot issues with the LM3103MHX/NOPB, start by verifying the device's operating conditions, including the input voltage, output voltage, and load current. Check the PCB layout and component values to ensure they meet the recommended specifications. Use oscilloscopes and other diagnostic tools to identify any anomalies or oscillations in the output voltage.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM3103MHX/NOPB Overview

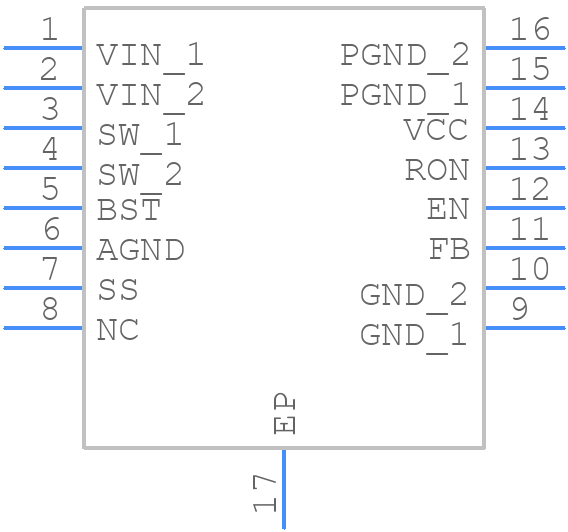

Use the download button to access the LM3103MHX/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM310,
or try a keyword search, such as Switching Regulator or Controllers
