The maximum voltage that can be applied to the input pins is ±30V, but it's recommended to keep it within the supply voltage range to ensure proper operation.
To prevent oscillation, add a small capacitor (e.g., 10nF) between the output and the negative supply pin, and a small resistor (e.g., 1kΩ) between the output and the input pins.
The minimum input voltage required for proper operation is 4.5V, but it's recommended to use a minimum of 5V for optimal performance.
No, the LM311DG is a comparator, not an amplifier. It's designed to compare two input voltages and output a digital signal, not to amplify a signal.
The pull-up resistor value depends on the load current and the desired output voltage. A general rule of thumb is to use a value between 1kΩ and 10kΩ.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM311DG Overview

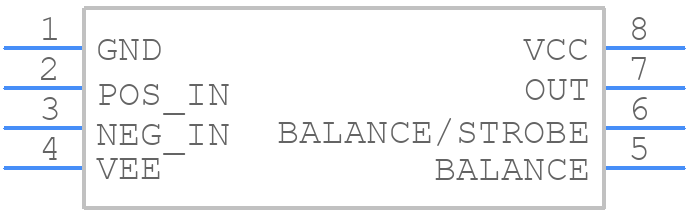

Use the download button to access the LM311DG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM311,
or try a keyword search, such as Comparators
