The LM311DR2 is a high-speed comparator, and as such, it requires careful PCB design and layout to minimize noise and ensure reliable operation. It is recommended to keep the input traces short and away from noise sources, use a solid ground plane, and decouple the power supply with a 0.1uF capacitor. Additionally, it is recommended to use a low-ESR capacitor for the output filter capacitor (CF) to minimize ringing and oscillations.
The output pull-up resistor (RP) value depends on the specific application and the load connected to the output. A general rule of thumb is to choose a value that is low enough to ensure a fast rise time, but high enough to limit the current and prevent excessive power consumption. A typical value for RP is in the range of 1kΩ to 10kΩ. It is also important to consider the output capacitance and the load capacitance when selecting the RP value.
The LM311DR2 is a high-speed comparator with a response time of 40ns, which corresponds to a maximum frequency of operation of around 10MHz. However, the actual frequency of operation depends on the specific application, the input signal frequency, and the output load. It is recommended to consult the datasheet and perform simulations or testing to determine the maximum frequency of operation for a specific application.
No, the LM311DR2 is a comparator, not a voltage regulator or amplifier. It is designed to compare two input voltages and output a digital signal indicating which input is higher. It is not designed to regulate voltage or amplify signals. Using the LM311DR2 as a voltage regulator or amplifier can lead to unstable operation, oscillations, or even damage to the device.
When the output of the LM311DR2 is not connected to a load, it is recommended to connect a pull-down resistor (RD) to ground to prevent the output from floating. The value of RD should be chosen to be high enough to limit the current, but low enough to ensure a fast fall time. A typical value for RD is in the range of 10kΩ to 100kΩ.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM311DR2 Overview

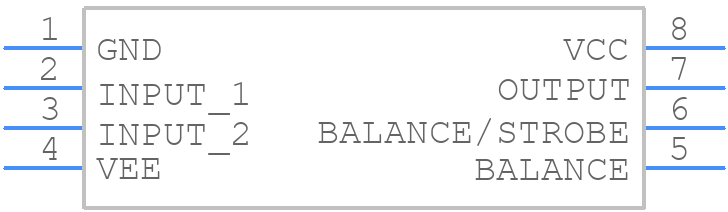

Use the download button to access the LM311DR2 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like LM311,
or try a keyword search, such as Comparators
