The LM311DR2G should be placed close to the signal source, and the input traces should be kept short and shielded to minimize noise pickup. A ground plane under the device can help reduce noise. Additionally, decoupling capacitors should be placed close to the device to filter out high-frequency noise.
For single-supply operation, the LM311DR2G requires a bias voltage between VCC and GND. A voltage divider or a resistive network can be used to generate the bias voltage. The bias voltage should be set to approximately half of the supply voltage (VCC) to ensure proper operation.
The maximum allowable input voltage for the LM311DR2G is the supply voltage (VCC) plus 0.3V. Exceeding this voltage can cause damage to the device. It's essential to ensure that the input voltage does not exceed this limit to prevent device damage.
When the LM311DR2G is not in use, the output should be pulled up or pulled down to a valid logic level to prevent unwanted oscillations or noise. A pull-up or pull-down resistor can be used to tie the output to a valid logic level.
The recommended operating temperature range for the LM311DR2G is -40°C to 125°C. Operating the device outside this range can affect its performance and reliability.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM311DR2G Overview

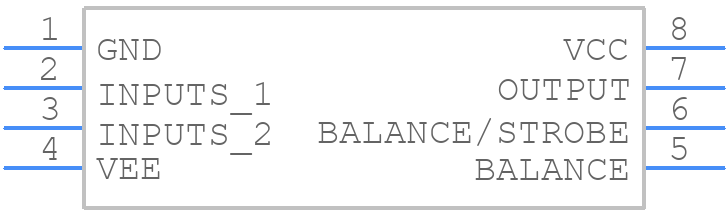

Use the download button to access the LM311DR2G schematic symbol and PCB footprint.
