LM311M - Texas Instruments

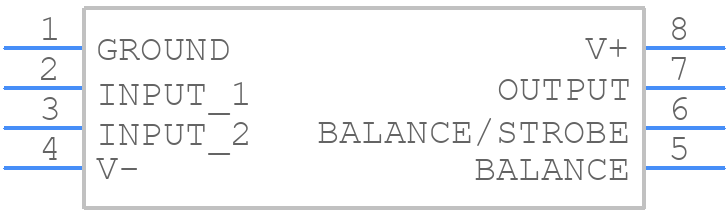

LM311M Details

• Manufacturer Part Number:

  LM311M

• Brand Name:

  Texas Instruments

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  SOIC

• Pin Count:

  8

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Date Of Intro:

  1988-05-01

• Manufacturer:

  Texas Instruments

• YTEOL:

  0

• Amplifier Type:

  COMPARATOR

• Average Bias Current-Max (IIB):

  0.3 µA

• Bias Current-Max (IIB) @25C:

  0.25 µA

• Input Offset Voltage-Max:

  7500 µV

• JESD-30 Code:

  R-PDSO-G8

• JESD-609 Code:

  e0

• Length:

  4.9 mm

• Moisture Sensitivity Level:

  1

• Neg Supply Voltage Limit-Max:

  -18 V

• Neg Supply Voltage-Nom (Vsup):

  -15 V

• Number of Functions:

  1

• Number of Terminals:

  8

• Operating Temperature-Max:

  70 °C

• Output Type:

  OPEN-COLLECTOR; OPEN-DRAIN

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SOP

• Package Equivalence Code:

  SOP8,.25

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Packing Method:

  TUBE

• Peak Reflow Temperature (Cel):

  235

• Qualification Status:

  Not Qualified

• Response Time-Nom:

  200 ns

• Seated Height-Max:

  1.75 mm

• Subcategory:

  Comparator

• Supply Current-Max:

  7.5 mA

• Supply Voltage Limit-Max:

  18 V

• Supply Voltage-Nom (Vsup):

  15 V

• Surface Mount:

  YES

• Technology:

  BIPOLAR

• Temperature Grade:

  COMMERCIAL

• Terminal Finish:

  Tin/Lead (Sn/Pb)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  20

• Width:

  3.9 mm
