The LM311PWRG4 is a high-speed comparator, and as such, it requires careful PCB design and layout to minimize noise and ensure reliable operation. TI recommends using a ground plane, keeping the input traces short and away from the output, and using a low-ESR capacitor for power decoupling. A 4-layer PCB with a dedicated ground plane is recommended.
The LM311PWRG4 has an open-drain output stage, which means it can sink current but not source it. To ensure reliable operation, a pull-up resistor is required to VCC. The value of the pull-up resistor depends on the load and the desired rise time. A typical value is 1kΩ to 10kΩ.
The maximum allowable input voltage for the LM311PWRG4 is ±30V, but this is only for transient conditions. For continuous operation, the input voltage should be limited to ±15V to ensure reliable operation and prevent damage to the device.
For single-supply operation, the LM311PWRG4 requires a bias voltage on the inverting input (VIN-) to set the switching threshold. A voltage divider or a resistive network can be used to generate the bias voltage. The bias voltage should be set to approximately half of the supply voltage (VCC) for symmetrical switching.
The response time of the LM311PWRG4 depends on the input signal slope and the output load. Typically, the response time is around 10ns to 20ns for a 10mV input signal and a 1kΩ output load. However, this can vary depending on the specific application and operating conditions.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM311PWRG4 Overview

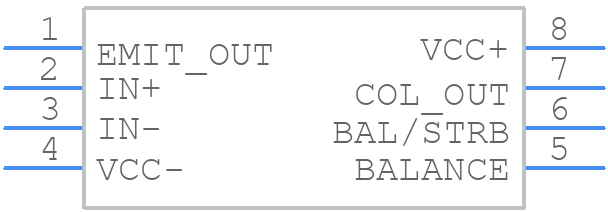

Use the download button to access the LM311PWRG4 schematic symbol, PCB footprint, and 3D model.
