SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.2 mm
Surface Mount:
YES
Switcher Configuration:
PUSH-PULL
Switching Frequency-Max:
1000 kHz
Technology:
BICMOS
Temperature Grade:
AUTOMOTIVE
Terminal Finish:
Matte Tin (Sn)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
4.4 mm
LM3150MH/NOPB Frequently Asked Questions (FAQs)
A good PCB layout for the LM3150MH/NOPB involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the input and output traces. Additionally, it's recommended to use a separate analog and digital ground plane to reduce noise coupling.
To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Also, ensure that the input and output capacitors are of high quality and have low ESR. Additionally, consider adding a small capacitor (e.g., 10nF) between the VCC and GND pins to improve stability.
The LM3150MH/NOPB is rated for operation from -40°C to 125°C. However, the maximum ambient temperature range may vary depending on the specific application and thermal design. It's recommended to consult the datasheet and thermal design guidelines for more information.
Yes, the LM3150MH/NOPB is suitable for high-reliability and automotive applications. It's built with high-reliability materials and manufacturing processes, and it meets the requirements of the AEC-Q100 automotive standard. However, it's recommended to consult the datasheet and relevant industry standards for more information.
To troubleshoot issues with the LM3150MH/NOPB, start by checking the input and output voltages, as well as the current consumption. Verify that the component values and PCB layout meet the recommended guidelines. Use an oscilloscope to check for noise and oscillations. If the issue persists, consult the datasheet and application notes for more information.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM3150MH/NOPB Overview

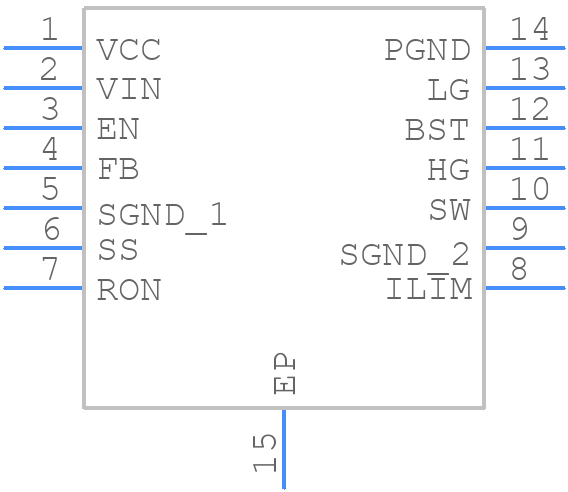

Use the download button to access the LM3150MH/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM315,
or try a keyword search, such as Switching Regulator or Controllers
