Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general guidelines for switching regulator layout, such as keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing trace lengths and widths.
To ensure the LM3151MH-3.3/NOPB operates within its thermal limits, calculate the junction temperature (TJ) using the formula provided in the datasheet, and ensure it stays below the maximum rated TJ of 150°C. Also, consider using a heat sink or thermal pad to improve heat dissipation.
Although the datasheet specifies a maximum input voltage of 15V, it's recommended to derate the input voltage to 12V to ensure reliable operation and minimize the risk of damage or failure.
While the LM3151MH-3.3/NOPB is a high-performance device, it's not specifically designed for high-reliability or automotive applications. For such applications, consider using devices with specific automotive or high-reliability qualifications, such as AEC-Q100 or MIL-STD-883.
To troubleshoot issues with the LM3151MH-3.3/NOPB, start by verifying the PCB layout and component values, then check the input and output voltage waveforms using an oscilloscope. Consult the datasheet and application notes for guidance on troubleshooting common issues.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM3151MH-3.3/NOPB Overview

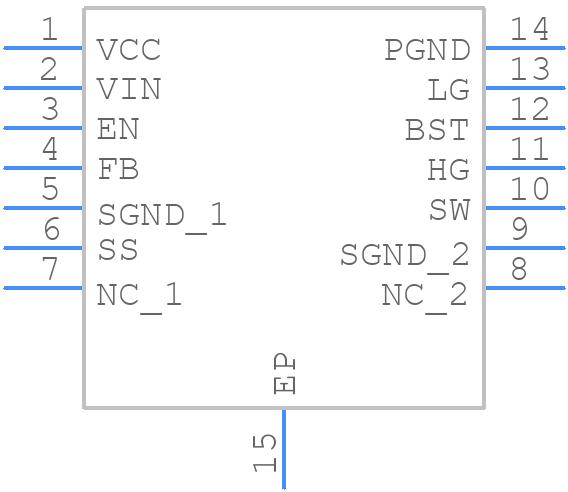

Use the download button to access the LM3151MH-3.3/NOPB schematic symbol, PCB footprint, and 3D model.
