Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general best practices for switching regulator layouts, such as keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing trace lengths and widths.
To ensure accurate and stable output voltage, make sure to use a high-quality output capacitor with low ESR, follow the recommended input and output capacitor values, and keep the input voltage within the specified range. Additionally, consider using a voltage reference IC or a precision resistor divider network to improve output voltage accuracy.
Although the datasheet specifies a maximum input voltage of 15V, it's recommended to limit the input voltage to 12V or less to ensure reliable operation and prevent damage to the IC. Exceeding the maximum input voltage can cause the IC to overheat or fail.
The LM3152MHX-3.3/NOPB is rated for operation up to 125°C, but it's essential to consider the thermal design and ensure that the IC is properly heat-sinked to prevent overheating. Additionally, the output voltage may drift slightly with temperature, so consider using a temperature-compensated voltage reference or a precision voltage regulator for critical applications.
To troubleshoot issues with the LM3152MHX-3.3/NOPB, start by checking the input and output voltage levels, ensuring that the input voltage is within the specified range and the output voltage is within the expected tolerance. Verify that the output capacitor is properly sized and that the PCB layout is correct. Use an oscilloscope to check for oscillations or ringing on the output voltage, and consider using a frequency counter to measure the switching frequency.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM3152MHX-3.3/NOPB Overview

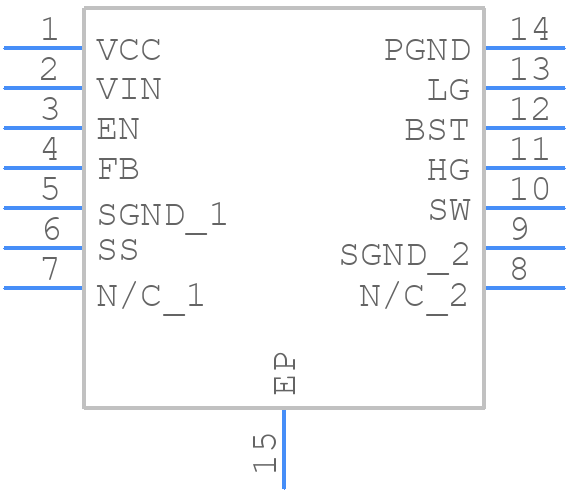

Use the download button to access the LM3152MHX-3.3/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM315,
or try a keyword search, such as Switching Regulator or Controllers
