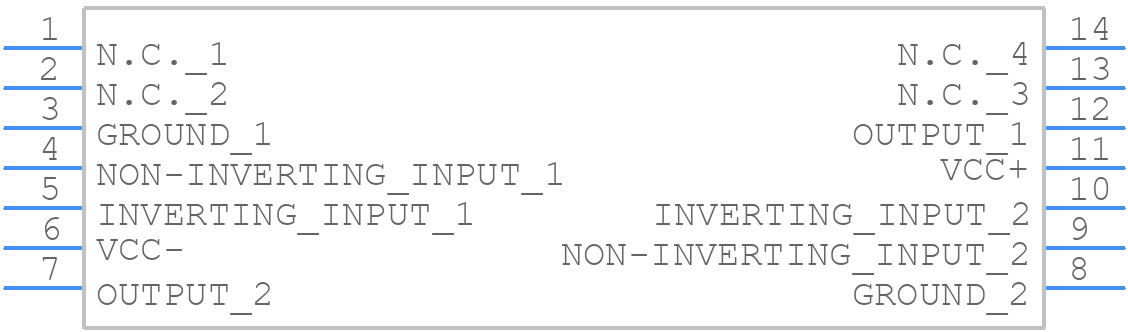

LM319N - STMicroelectronics

LM319N Details

• Manufacturer Part Number:

  LM319N

• Brand Name:

  STMicroelectronics

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  DIP

• Package Description:

  ROHS COMPLIANT, PLASTIC, DIP-14

• Pin Count:

  14

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Manufacturer:

  STMicroelectronics

• YTEOL:

  0

• Amplifier Type:

  COMPARATOR

• Average Bias Current-Max (IIB):

  0.0012 µA

• Bias Current-Max (IIB) @25C:

  1 µA

• Input Offset Voltage-Max:

  10000 µV

• JESD-30 Code:

  R-PDIP-T14

• JESD-609 Code:

  e4

• Length:

  20 mm

• Moisture Sensitivity Level:

  1

• Neg Supply Voltage Limit-Max:

  -25 V

• Neg Supply Voltage-Nom (Vsup):

  -15 V

• Number of Functions:

  2

• Number of Terminals:

  14

• Operating Temperature-Max:

  70 °C

• Output Type:

  OPEN-COLLECTOR

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  DIP

• Package Equivalence Code:

  DIP14,.3

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE

• Qualification Status:

  Not Qualified

• Response Time-Nom:

  80 ns

• Seated Height-Max:

  5.1 mm

• Supply Current-Max:

  12.5 mA

• Supply Voltage Limit-Max:

  18 V

• Supply Voltage-Nom (Vsup):

  15 V

• Surface Mount:

  NO

• Technology:

  BIPOLAR

• Temperature Grade:

  COMMERCIAL

• Terminal Finish:

  NICKEL PALLADIUM GOLD

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  DUAL

• Width:

  7.62 mm
