Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general best practices for switching regulator layout, such as keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing trace lengths and widths.
To ensure stability, make sure to follow the recommended component values and layout guidelines in the datasheet. Additionally, ensure that the input and output capacitors meet the recommended specifications, and that the feedback network is properly compensated. You can also use simulation tools like SPICE or TI's WEBENCH to verify the design.
The LM3203TL/NOPB has an operating junction temperature range of -40°C to 125°C, but the maximum ambient temperature range depends on the specific application and thermal design. As a general rule, the ambient temperature should be kept below 85°C to ensure reliable operation.
The LM3203TL/NOPB is a commercial-grade device, but it can be used in high-reliability or automotive applications with proper design and validation. However, it's recommended to consult with Texas Instruments' application engineers and follow the relevant industry standards and guidelines for reliability and qualification.
To troubleshoot issues with the LM3203TL/NOPB, start by verifying the input voltage, output voltage, and current. Check for proper component values, layout, and thermal design. Use oscilloscopes or other measurement tools to verify the switching frequency, output ripple, and other parameters. Consult the datasheet and application notes for troubleshooting guidelines, and contact Texas Instruments' support team if necessary.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM3203TL/NOPB Overview

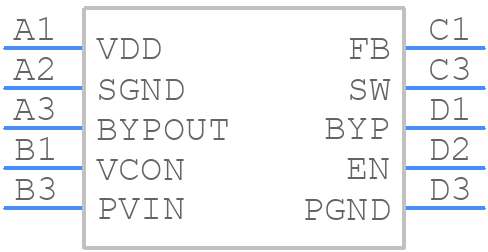

Use the download button to access the LM3203TL/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM320,
or try a keyword search, such as Switching Regulator or Controllers
