Texas Instruments provides a recommended PCB layout in the LM3208 application note (SLVAU65) that includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure optimal performance.
To ensure stability, it's essential to follow the recommended compensation network and component values provided in the datasheet. Additionally, the output capacitor's ESR and ESL should be considered, and the output voltage should be decoupled with a low-ESR capacitor.
Although the datasheet specifies a maximum input voltage of 42V, it's recommended to limit the input voltage to 40V to ensure reliable operation and prevent damage to the internal components.
The LM3208 is rated for operation up to 125°C, but it's essential to consider the thermal derating curves provided in the datasheet to ensure the device operates within its specified limits. Additionally, the PCB layout and thermal management should be designed to minimize thermal resistance and prevent overheating.
The output voltage ripple and noise can be calculated using the equations provided in the datasheet, which take into account the switching frequency, output capacitor values, and other parameters. Additionally, simulation tools like SPICE or PSpice can be used to model the circuit and estimate the output voltage ripple and noise.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM3208TL/NOPB Overview

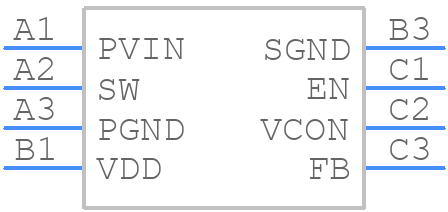

Use the download button to access the LM3208TL/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM320,
or try a keyword search, such as Switching Regulator or Controllers
