LM322N - Texas Instruments

Description: The LM122 series are precision timers that offer great versatility with high accuracy. They operate with unregulated supplies from 4.5V to 40V while maintaining constant timing periods from microseconds to hours. Internal logic and regulator circuits complement the basic timing function enabling the LM122 series to operate in many different applications with a minimum of external components. The output of the timer is a floating transistor with built in current limiting. It can drive either ground refe

Download LM322N Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

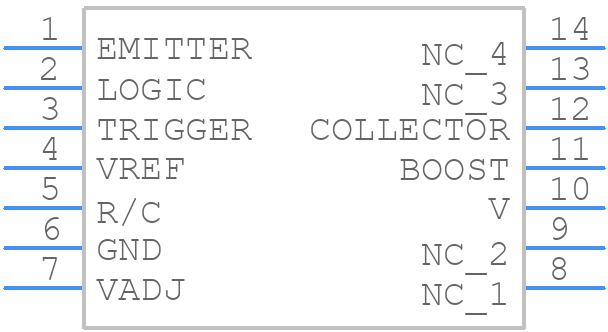

LM322N - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LM322N - Texas Instruments PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - dip
click to zoom
3D Models
LM322N - Texas Instruments - 3D model - Dual-In-Line Packages - dip
click to zoom

LM322N Details

  • Manufacturer Part Number:

    LM322N

  • Rohs Code:

    No

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    DIP, DIP14,.3

  • Reach Compliance Code:

    Unknown

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Analog IC - Other Type:

    RECTANGULAR

  • JESD-30 Code:

    R-PDIP-T14

  • JESD-609 Code:

    e0

  • Length:

    19.18 mm

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP14,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    5.08 mm

  • Supply Current-Max (Isup):

    4.5 mA

  • Supply Voltage-Max (Vsup):

    40 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Surface Mount:

    NO

  • Technology:

    BIPOLAR

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    TIN LEAD

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

LM322N Frequently Asked Questions (FAQs)

  • The maximum input voltage that can be applied to the LM322N is 15V, but it's recommended to keep it below 12V for reliable operation.
  • The LM322N is rated for operation up to 125°C, but its performance may degrade at high temperatures. It's recommended to derate the output current and voltage at high temperatures.
  • To ensure stability, use a minimum output capacitance of 10uF with an ESR of 0.1-10 ohms, and keep the input capacitance below 10uF.
  • The LM322N has a dropout voltage of around 1.5V, so it's not suitable for low-dropout applications. Consider using a low-dropout regulator like the LM1117 or LM337 instead.
  • Use a TVS diode or a transient voltage suppressor in parallel with the input capacitor to protect the LM322N from input voltage transients.
