LM324F-GE2 - ROHM Semiconductor

Description: Ground Sense Operational Amplifier

Download LM324F-GE2 Model

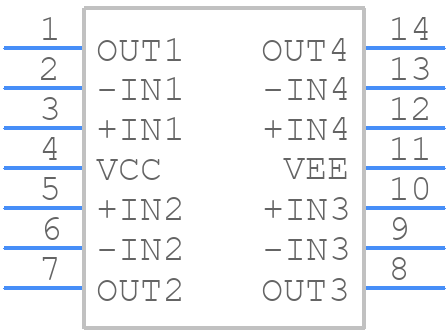

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
LM324F-GE2 - ROHM Semiconductor PCB footprint - Small Outline Packages - Small Outline Packages - SSOP-B14(1.35)
click to zoom
3D Models
LM324F-GE2 - ROHM Semiconductor  - 3D model - Small Outline Packages - SSOP-B14(1.35)
click to zoom

LM324F-GE2 Details

  • Manufacturer Part Number:

    LM324F-GE2

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • Package Description:

    SOP-14

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Date Of Intro:

    2017-12-19

  • Manufacturer:

    ROHM Semiconductor

  • YTEOL:

    1

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Average Bias Current-Max (IIB):

    0.3 µA

  • Common-mode Reject Ratio-Nom:

    80 dB

  • Input Offset Voltage-Max:

    5000 µV

  • JESD-30 Code:

    R-PDSO-G14

  • Length:

    8.7 mm

  • Number of Functions:

    4

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Seated Height-Max:

    1.71 mm

  • Slew Rate-Nom:

    0.3 V/us

  • Supply Voltage Limit-Max:

    36 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Unity Gain BW-Nom:

    800

  • Width:

    4.4 mm

LM324F-GE2 Frequently Asked Questions (FAQs)

  • The maximum power dissipation of the LM324F-GE2 is 670mW, which is calculated based on the package thermal resistance and the maximum junction temperature.
  • To ensure stability, it's essential to follow proper PCB layout practices, minimize parasitic capacitance, and use a compensation capacitor (if necessary) as recommended in the datasheet.
  • While the LM324F-GE2 can be used as a comparator, it's not recommended due to its relatively slow slew rate and limited output current. A dedicated comparator IC would be a better choice.
  • The recommended input impedance for the LM324F-GE2 is between 1kΩ and 10kΩ to ensure optimal performance and minimize input bias current effects.
  • To prevent ESD damage, use ESD protection devices (e.g., TVS diodes) on the input lines, and follow proper handling and storage procedures to minimize the risk of ESD damage.
