LM334SMX - Texas Instruments

Description: Current & Power Monitors & Regulators A 926-LM334SMX/NOPB

Download LM334SMX Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

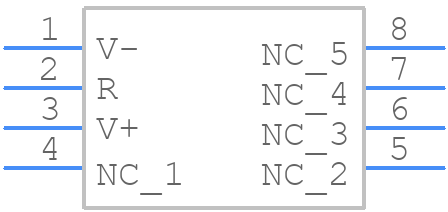

LM334SMX - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LM334SMX - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - D0008A
click to zoom
3D Models
LM334SMX - Texas Instruments - 3D model - Small Outline Packages - D0008A
click to zoom

LM334SMX Details

  • Manufacturer Part Number:

    LM334SMX

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    PLASTIC, SOIC-8

  • Pin Count:

    8

  • ECCN Code:

    EAR99

  • Date Of Intro:

    1995-01-01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • Input Voltage-Max:

    40 V

  • Input Voltage-Min:

    0.8 V

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e0

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    235

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    40 V

  • Supply Voltage-Min (Vsup):

    1 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Tin/Lead (Sn/Pb)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    3.9 mm

LM334SMX Frequently Asked Questions (FAQs)

  • The LM334SMX can operate from -40°C to 125°C, but the accuracy and stability of the voltage reference may degrade at extreme temperatures.
  • To ensure stability and accuracy, follow proper PCB layout guidelines, decouple the input and output with capacitors, and use a low-ESR capacitor at the output. Also, ensure the input voltage is within the recommended range and the output current is within the specified limit.
  • While the LM334SMX can be used as a voltage regulator, it's not recommended as it's primarily designed as a voltage reference. If you need a voltage regulator, consider using a dedicated voltage regulator IC like the LM317 or LM337.
  • The output voltage of the LM334SMX is fixed at 3.3V, but it can be adjusted using external resistors. Use the formula: Vout = 3.3V x (1 + R1/R2) to calculate the output voltage, where R1 and R2 are the external resistors.
  • The typical current consumption of the LM334SMX is around 1.5mA, but this can vary depending on the input voltage, output current, and operating temperature.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LM334SMX Overview

Use the download button to access the LM334SMX schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM334, or try a keyword search, such as Other Signal Circuits

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
