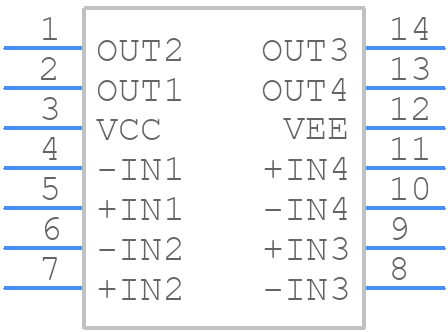

LM339F-E2 - ROHM Semiconductor

LM339F-E2 Details

• Manufacturer Part Number:

  LM339F-E2

• Rohs Code:

  Yes

• Part Life Cycle Code:

  End Of Life

• Package Description:

  SOP-14

• Country Of Origin:

  Philippines

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Manufacturer:

  ROHM Semiconductor

• YTEOL:

  3

• Amplifier Type:

  COMPARATOR

• Average Bias Current-Max (IIB):

  0.5 µA

• Bias Current-Max (IIB) @25C:

  0.25 µA

• Input Offset Voltage-Max:

  5000 µV

• JESD-30 Code:

  R-PDSO-G14

• Length:

  8.7 mm

• Number of Functions:

  4

• Number of Terminals:

  14

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Output Type:

  OPEN-COLLECTOR

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SOP

• Package Equivalence Code:

  SOP14,.25

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Packing Method:

  TR

• Response Time-Nom:

  1000 ns

• Seated Height-Max:

  1.71 mm

• Supply Current-Max:

  2.5 mA

• Supply Voltage Limit-Max:

  36 V

• Supply Voltage-Nom (Vsup):

  5 V

• Surface Mount:

  YES

• Terminal Form:

  GULL WING

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  DUAL

• Width:

  4.4 mm
