LM339M - Texas Instruments

Description: Quad Comparators

Download LM339M Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

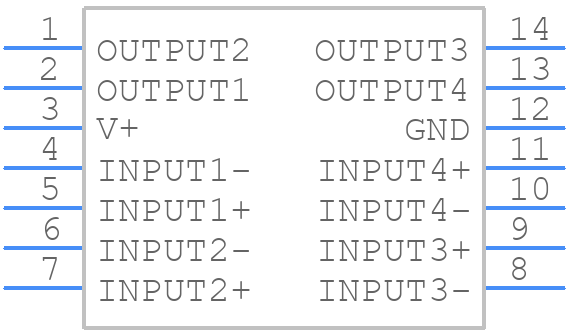

Symbol
LM339M - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LM339M - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - D (-R-PDSO-G14)
click to zoom
3D Models
LM339M - Texas Instruments - 3D model - Small Outline Packages - D (-R-PDSO-G14)
click to zoom

LM339M Details

  • Manufacturer Part Number:

    LM339M

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    SOIC-14

  • Pin Count:

    14

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    1988-04-01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Amplifier Type:

    COMPARATOR

  • Average Bias Current-Max (IIB):

    0.4 µA

  • Bias Current-Max (IIB) @25C:

    0.25 µA

  • Input Offset Voltage-Max:

    5000 µV

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e0

  • Length:

    8.65 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    4

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Output Type:

    OPEN-COLLECTOR

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TUBE

  • Peak Reflow Temperature (Cel):

    235

  • Qualification Status:

    Not Qualified

  • Response Time-Nom:

    1300 ns

  • Seated Height-Max:

    1.75 mm

  • Subcategory:

    Comparator

  • Supply Current-Max:

    2 mA

  • Supply Voltage Limit-Max:

    36 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Tin/Lead (Sn/Pb)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

LM339M Frequently Asked Questions (FAQs)

  • The maximum voltage that can be applied to the input pins is the supply voltage (VCC) + 0.3V. Exceeding this voltage can cause damage to the device.
  • To prevent oscillation, ensure that the input signals are properly filtered and decoupled, and that the output is properly loaded. Additionally, consider adding hysteresis to the comparator by adding a small amount of positive feedback from the output to the non-inverting input.
  • The minimum input voltage required for the comparator to function correctly is typically around 1.5V to 2V, depending on the specific application and the desired accuracy. However, the device can operate down to 0V, but with reduced accuracy and speed.
  • No, the LM339M is a comparator, not a voltage regulator. It is designed to compare two input voltages and output a digital signal indicating which input is higher. It is not designed to regulate voltage and should not be used as a substitute for a voltage regulator.
  • The pull-up resistor value depends on the specific application and the load connected to the output. A general rule of thumb is to choose a value between 1kΩ and 10kΩ. A higher value will reduce power consumption but may increase the rise time of the output signal.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LM339M Overview

Use the download button to access the LM339M schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM339, or try a keyword search, such as Comparators

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.

Suggested Parts

If you searched for LM339M, you might also be interested in these parts:
Part Number
LM339MX_NL
LM339MX
74HC4066D
PIC18F25K80T-I/SS
RK7002BT116
SI2301CDS-T1-GE3.
TSM2309CX RFG
MDC3105LT1G
TPS7A4501DCQR

Parts related to LM339M

Showing 0 results

Part Image

← Prev Next →
About Us Contact Us Terms of Service Do not sell or share my personal information Privacy Policy Digital Services Act Library Loader Twitter LinkedIn

All content Copyright © 2020, Supplyframe.com. All rights reserved. Back to top ↑

LM339M Alternates

Showing results

Image Part Number Model
Part Image LM339M/NOPB National Semiconductor Corporation

Comparator, 4 Func, 9000uV Offset-Max, 1300ns Response Time, BIPolar, PDSO14
Part Image LM339M Fairchild Semiconductor Corporation

Comparator, 4 Func, 9000uV Offset-Max, 1300ns Response Time, BIPolar, PDSO14
Part Image LM339DG Rochester Electronics LLC

Comparator, 4 Func, 9000uV Offset-Max, 1300ns Response Time, BIPolar, PDSO14
Part Image LM339D onsemi

Comparator, 4 Func, 9000uV Offset-Max, 1300ns Response Time, BIPolar, PDSO14
Part Image CA0339M96 Intersil Corporation

Comparator, 4 Func, 9000uV Offset-Max, 1300ns Response Time, BIPolar, PDSO14
For a full list of alternate parts for LM339M, check out Findchips.com
