A good PCB layout for optimal thermal performance involves placing the device near a thermal pad or a heat sink, and ensuring good airflow around the device. The datasheet provides some guidelines, but a more detailed application note from TI (SLUA477) provides additional guidance.
To ensure reliable start-up and shutdown, it's essential to follow the recommended power-up and power-down sequencing, as outlined in the datasheet. Additionally, ensure that the input voltage rises monotonically and that the output voltage is properly decoupled.
Operating the LM3404HVMRX/NOPB at high ambient temperatures can reduce its reliability and lifespan. It's essential to derate the device's power dissipation according to the datasheet's thermal derating curve and to ensure good airflow around the device.
To troubleshoot issues with the LM3404HVMRX/NOPB, start by verifying the input voltage, output voltage, and current. Check for proper PCB layout, decoupling, and thermal management. Use an oscilloscope to inspect the output voltage waveform and look for signs of oscillation or instability.
The LM3404HVMRX/NOPB is a commercial-grade device, and its use in high-reliability or safety-critical applications may require additional qualification and testing. Engineers should consult with TI's application engineers and review the device's reliability and quality data to determine its suitability for such applications.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM3404HVMRX/NOPB Overview

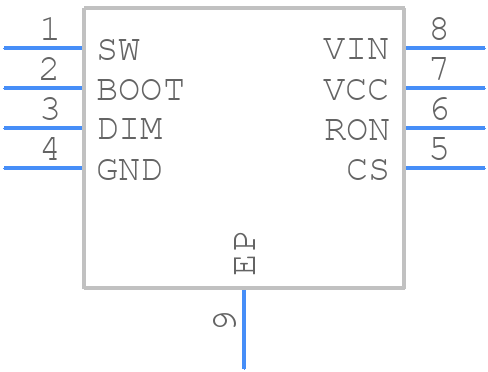

Use the download button to access the LM3404HVMRX/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM340,
or try a keyword search, such as Display Drivers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
