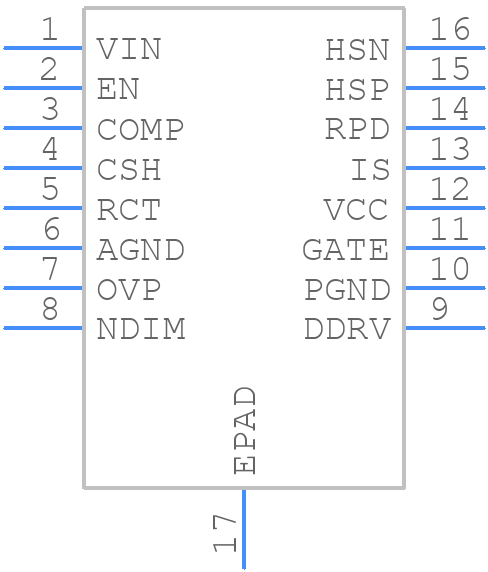

LM3421MH - Texas Instruments

LM3421MH Details

• Manufacturer Part Number:

  LM3421MH

• Pbfree Code:

  No

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  TSSOP

• Package Description:

  LEED FREE, TSSOP-16

• Pin Count:

  16

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Manufacturer:

  Texas Instruments

• YTEOL:

  0

• Data Input Mode:

  SERIAL

• Input Characteristics:

  SCHMITT TRIGGER

• Interface IC Type:

  LED DISPLAY DRIVER

• JESD-30 Code:

  R-PDSO-G16

• Length:

  5 mm

• Moisture Sensitivity Level:

  1

• Multiplexed Display Capability:

  NO

• Number of Functions:

  1

• Number of Segments:

  1

• Number of Terminals:

  16

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• Output Characteristics:

  CONSTANT-CURRENT

• Output Polarity:

  TRUE

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HSSOP

• Package Equivalence Code:

  TSSOP16,.25

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, HEAT SINK/SLUG, SHRINK PITCH

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  1.1 mm

• Supply Current-Max:

  25 mA

• Supply Voltage-Max:

  75 V

• Supply Voltage-Min:

  4.5 V

• Supply Voltage-Nom:

  14 V

• Supply Voltage1-Max:

  75 V

• Supply Voltage1-Min:

  4.5 V

• Supply Voltage1-Nom:

  14 V

• Surface Mount:

  YES

• Technology:

  BICMOS

• Temperature Grade:

  AUTOMOTIVE

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.65 mm

• Terminal Position:

  DUAL

• Width:

  4.4 mm
