SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Screening Level:
AEC-Q100
Seated Height-Max:
1.1 mm
Supply Voltage-Max:
75 V
Supply Voltage-Min:
4.5 V
Supply Voltage-Nom:
14 V
Supply Voltage1-Max:
75 V
Supply Voltage1-Min:
4.5 V
Supply Voltage1-Nom:
14 V
Surface Mount:
YES
Technology:
BICMOS
Temperature Grade:
AUTOMOTIVE
Terminal Finish:
Matte Tin (Sn)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
4.4 mm
fmax-Min:
2 MHz
LM3421Q0MH/NOPB Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended PCB layout in the LM3421 application note (SLVAU65) that includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure optimal performance.
To ensure reliable start-up and shutdown, it is recommended to follow the start-up and shutdown sequencing guidelines provided in the datasheet, including the use of a soft-start circuit and a voltage supervisor to prevent unwanted switching during power-up and power-down.
Operating the LM3421 at high ambient temperatures can reduce its reliability and lifespan. It is essential to consider the thermal derating curves provided in the datasheet and ensure that the device is properly heatsinked and cooled to maintain a safe junction temperature.
Yes, the LM3421 is qualified for automotive and high-reliability applications. However, it is essential to follow the recommended design and manufacturing guidelines, and to consult with Texas Instruments' technical support team to ensure that the device meets the specific requirements of the application.
Texas Instruments provides a troubleshooting guide in the LM3421 application note (SLVAU65) that covers common issues and their solutions, including oscillations, instability, and overvoltage protection. Additionally, the TI E2E community forum is a valuable resource for seeking help from experienced engineers and TI experts.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM3421Q0MH/NOPB Overview

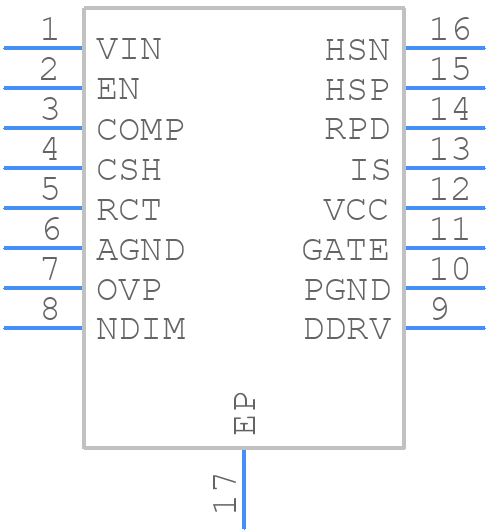

Use the download button to access the LM3421Q0MH/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM342,
or try a keyword search, such as Display Drivers
