Texas Instruments provides a recommended PCB layout in the LM3421Q1MHX/NOPB datasheet, which includes a thermal pad connected to a copper plane on the PCB to dissipate heat. Additionally, it's recommended to use a 2-ounce copper PCB and to keep the thermal pad away from other components to minimize thermal resistance.
To ensure reliable startup and shutdown, it's recommended to use a soft-start circuit to limit the inrush current during startup, and to use a voltage supervisor or reset IC to ensure the device is fully powered up before enabling the output. Additionally, a capacitor can be added to the input to filter out noise and ensure a clean startup.
The maximum output current capability of the LM3421Q1MHX/NOPB is 1.5A, but it's recommended to derate the output current based on the ambient temperature and the thermal resistance of the PCB. The device can deliver up to 1.5A at 25°C, but the output current should be reduced to 1A at 50°C and 0.5A at 85°C.
To protect the LM3421Q1MHX/NOPB from input voltage transients and surges, it's recommended to use a TVS (Transient Voltage Suppressor) diode or a voltage clamp circuit at the input. Additionally, a filter capacitor can be added to the input to filter out high-frequency noise and transients.
The recommended input capacitor value is 10uF to 22uF, and it's recommended to use a low-ESR ceramic capacitor or a film capacitor with a voltage rating of at least 25V. The input capacitor should be placed as close as possible to the input pin of the device to minimize noise and ripple.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM3421Q1MHX/NOPB Overview

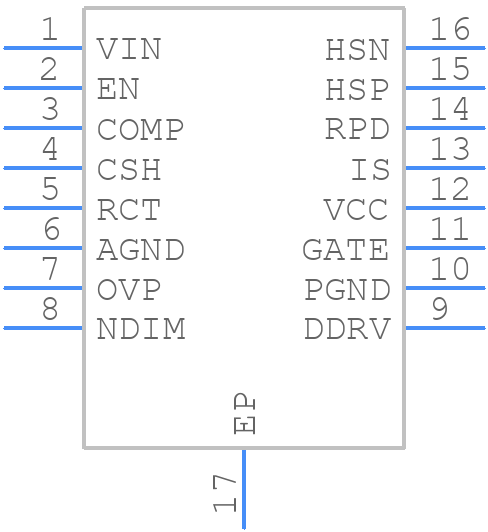

Use the download button to access the LM3421Q1MHX/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM342,
or try a keyword search, such as Display Drivers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
