LM3424QMH/NOPB - Texas Instruments

Description: Constant Current N-Channel Controller with Thermal Foldback for Driving LEDs

Download LM3424QMH/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

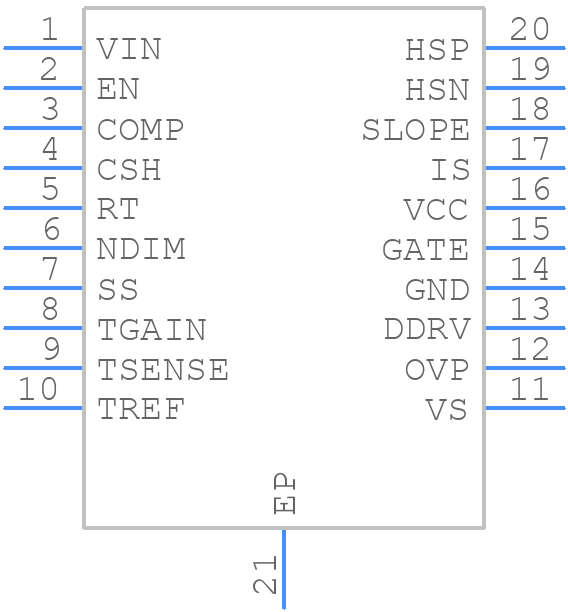

Symbol
LM3424QMH/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LM3424QMH/NOPB - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PWP0020A_
click to zoom
3D Models
LM3424QMH/NOPB - Texas Instruments - 3D model - Small Outline Packages - PWP0020A_
click to zoom

LM3424QMH/NOPB Details

  • Manufacturer Part Number:

    LM3424QMH/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    HTSSOP-20

  • Pin Count:

    20

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Data Input Mode:

    SERIAL

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    6.5 mm

  • Moisture Sensitivity Level:

    1

  • Multiplexed Display Capability:

    NO

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Segments:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    CONSTANT-CURRENT

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max:

    75 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    14 V

  • Supply Voltage1-Max:

    75 V

  • Supply Voltage1-Min:

    4.5 V

  • Supply Voltage1-Nom:

    14 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

  • fmax-Min:

    2 MHz

LM3424QMH/NOPB Frequently Asked Questions (FAQs)

  • A good PCB layout for the LM3424QMH/NOPB should include a solid ground plane, a separate power plane for the input voltage, and a heat sink attached to the thermal pad. The layout should also minimize thermal resistance and ensure good airflow around the device.
  • The input capacitor should be a low-ESR ceramic capacitor with a value of 10uF to 22uF, and the output capacitor should be a low-ESR ceramic capacitor with a value of 10uF to 47uF. The capacitor values and types should be chosen based on the specific application requirements and the output voltage ripple requirements.
  • The LM3424QMH/NOPB can operate in ambient temperatures up to 105°C, but the device's junction temperature should not exceed 150°C. The device's thermal performance should be carefully evaluated to ensure that it can operate within the specified temperature range.
  • The LM3424QMH/NOPB should be thermally coupled to a heat sink using a thermal interface material (TIM) such as thermal grease or thermal tape. The heat sink should be designed to provide good airflow and should be attached to the device using screws or a clip. The thermal interface material should be applied according to the manufacturer's instructions.
  • The recommended input voltage range for the LM3424QMH/NOPB is 7V to 42V, but the device can operate with input voltages as low as 5V and as high as 50V. However, the device's performance and efficiency may be affected at input voltages outside the recommended range.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LM3424QMH/NOPB Overview

Use the download button to access the LM3424QMH/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM342, or try a keyword search, such as Display Drivers
