SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Seated Height-Max:
1.2 mm
Surface Mount:
YES
Switcher Configuration:
BOOST
Switching Frequency-Max:
1000 kHz
Temperature Grade:
AUTOMOTIVE
Terminal Finish:
Matte Tin (Sn)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
4.4 mm
LM3431AQMH/NOPB Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended PCB layout in the LM3431 application note (SLVAU65) that includes thermal vias, copper pours, and component placement guidelines to minimize thermal resistance and ensure optimal performance.
To ensure reliable start-up and shutdown, it is recommended to follow the start-up and shutdown sequencing guidelines provided in the datasheet, including the proper timing and voltage sequencing of the input voltage, enable pin, and output voltage.
Operating the LM3431 at high ambient temperatures can reduce its reliability and lifespan. It is essential to consider the thermal derating curves provided in the datasheet and ensure that the device is properly heatsinked and cooled to maintain a safe junction temperature.
Yes, the LM3431 is qualified for automotive and high-reliability applications. However, it is essential to review the device's AEC-Q100 qualification and PPAP documentation, and to consult with Texas Instruments' technical support team to ensure that the device meets the specific requirements of the application.
Texas Instruments provides a troubleshooting guide in the LM3431 application note (SLVAU65) that covers common issues and their solutions, including output voltage instability, overheating, and start-up problems. Additionally, the TI E2E community and technical support team can provide further assistance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM3431AQMH/NOPB Overview

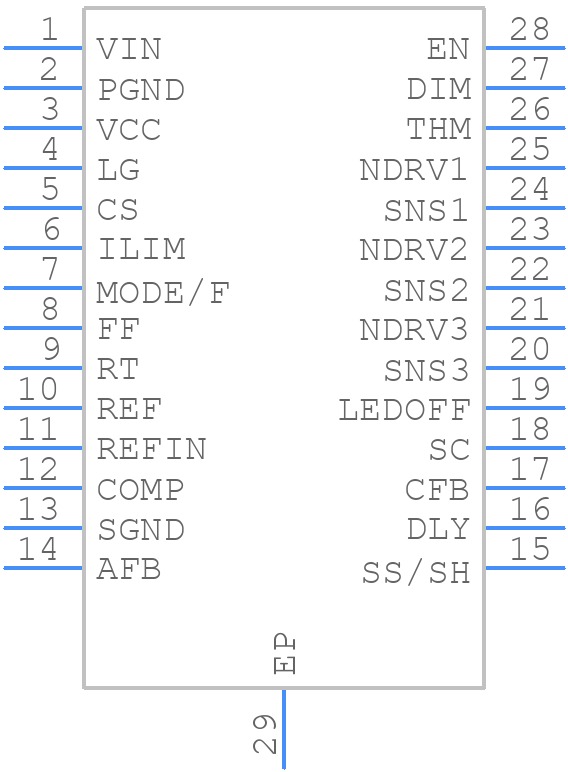

Use the download button to access the LM3431AQMH/NOPB schematic symbol, PCB footprint, and 3D model.
