Texas Instruments provides a recommended PCB layout in the application note SLVAE04, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure reliable operation.
To ensure stable and accurate output voltage, it's essential to follow the recommended input and output capacitor selection, as well as the layout guidelines. Additionally, the output voltage can be trimmed using the VTRIM pin, and the device also has a built-in soft-start feature to prevent output voltage overshoot during startup.
Although the datasheet specifies a maximum input voltage of 42V, it's recommended to derate the input voltage to 40V or lower to ensure reliable operation and prevent damage to the device. Exceeding the maximum input voltage can lead to reduced reliability and potential failure.
The LM3445M/NOPB has a built-in overcurrent protection (OCP) feature that limits the output current to a safe level during overload or short-circuit conditions. Additionally, it's recommended to add external overcurrent protection components, such as fuses or current-sensing resistors, to provide an additional layer of protection.
The recommended operating temperature range for the LM3445M/NOPB is -40°C to 125°C. However, the device can operate up to 150°C with derated specifications. It's essential to ensure the device is operated within the recommended temperature range to maintain reliability and performance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM3445M/NOPB Overview

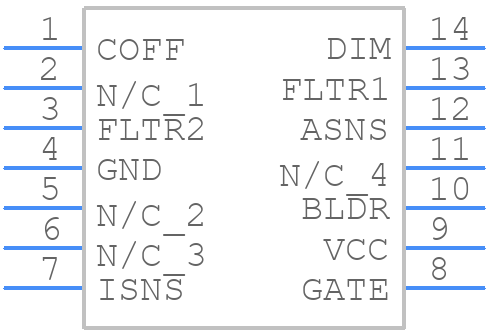

Use the download button to access the LM3445M/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM344,
or try a keyword search, such as Display Drivers
