SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.2 mm
Supply Current-Max:
3 mA
Supply Voltage-Max:
80 V
Supply Voltage-Min:
12 V
Supply Voltage-Nom:
48 V
Supply Voltage1-Max:
80 V
Supply Voltage1-Min:
12 V
Supply Voltage1-Nom:
48 V
Surface Mount:
YES
Technology:
BICMOS
Temperature Grade:
AUTOMOTIVE
Terminal Finish:
Matte Tin (Sn)
Terminal Form:
GULL WING
Terminal Pitch:
0.635 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
4.4 mm
LM3464AMH/NOPB Frequently Asked Questions (FAQs)
Texas Instruments recommends a 2-layer or 4-layer PCB with a solid ground plane on the bottom layer and a thermal relief pattern on the top layer to minimize thermal resistance. A thermal pad on the bottom of the package should be connected to the ground plane.
To ensure reliable start-up and operation, it is recommended to add a soft-start circuit to limit the inrush current and prevent voltage drops on the input supply. Additionally, a voltage supervisor or reset IC can be used to monitor the input voltage and ensure the device is operating within the recommended range.
The maximum output current capability of the LM3464AMH/NOPB is dependent on the input voltage, output voltage, and thermal conditions. However, as a general guideline, the device can deliver up to 1.5A of output current with a 12V input and 5V output, and up to 3A with a 12V input and 3.3V output, assuming a reasonable thermal design.
To minimize EMI, it is recommended to use a shielded inductor, keep the switching node (SW pin) as short as possible, and use a common-mode choke or EMI filter on the input and output lines. Additionally, a snubber network can be added to reduce the voltage ringing on the SW pin.
Texas Instruments recommends using a low-ESR ceramic capacitor with a value of 10uF to 22uF, depending on the input voltage and output current requirements. The capacitor should be placed as close as possible to the VIN pin to minimize the input impedance.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM3464AMH/NOPB Overview

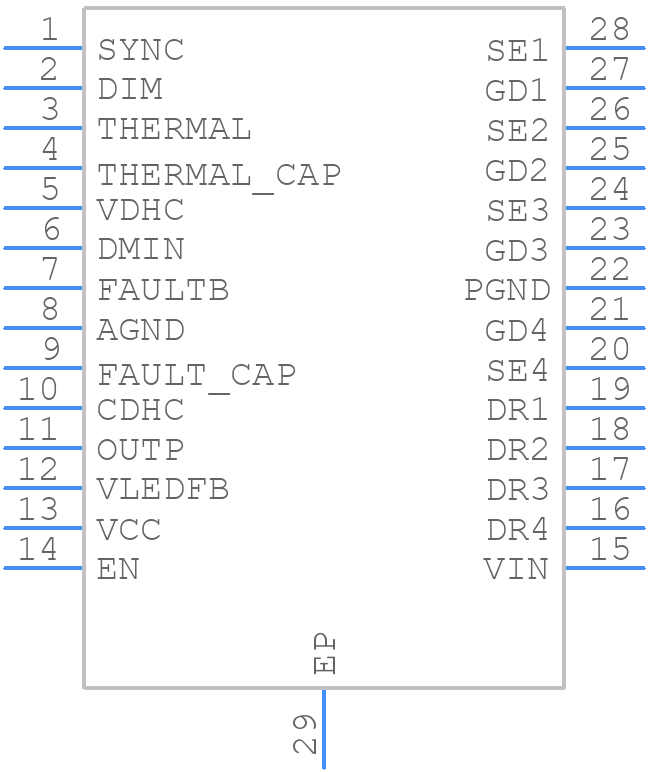

Use the download button to access the LM3464AMH/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM346,
or try a keyword search, such as Display Drivers
