LM3464MH/NOPB - Texas Instruments

Description: LED Driver with Dynamic Headroom Control and Thermal Control Interfaces

Download LM3464MH/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

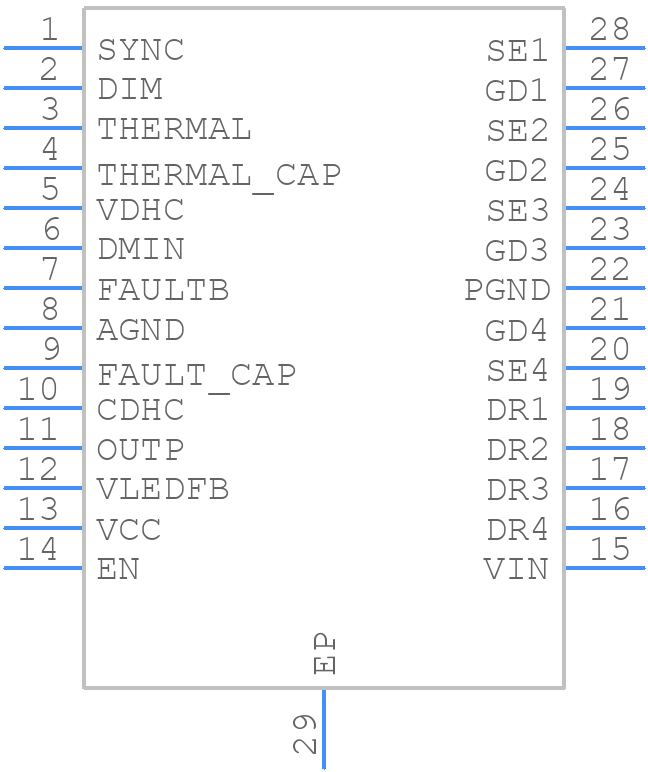

LM3464MH/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LM3464MH/NOPB - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PWP0028A
click to zoom
3D Models
LM3464MH/NOPB - Texas Instruments - 3D model - Small Outline Packages - PWP0028A
click to zoom

LM3464MH/NOPB Details

  • Manufacturer Part Number:

    LM3464MH/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Data Input Mode:

    SERIAL

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e3

  • Length:

    9.7 mm

  • Moisture Sensitivity Level:

    1

  • Multiplexed Display Capability:

    NO

  • Number of Channels:

    4

  • Number of Functions:

    1

  • Number of Segments:

    12

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP28,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max:

    3 mA

  • Supply Voltage-Max:

    95 V

  • Supply Voltage-Min:

    12 V

  • Supply Voltage-Nom:

    48 V

  • Supply Voltage1-Max:

    95 V

  • Supply Voltage1-Min:

    12 V

  • Supply Voltage1-Nom:

    48 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

LM3464MH/NOPB Frequently Asked Questions (FAQs)

  • Texas Instruments recommends a 2-layer or 4-layer PCB with a solid ground plane and a thermal relief pattern under the IC to improve thermal performance. A good layout should also minimize the distance between the IC and the output capacitors.
  • The output capacitors should have a low ESR (Equivalent Series Resistance) and be able to handle the output current. A minimum capacitance of 10uF is recommended, but larger values can be used for improved transient response. X5R or X7R ceramic capacitors are good options.
  • The absolute maximum input voltage rating is 42V, but it's recommended to operate the device within the recommended input voltage range of 7V to 40V for optimal performance and reliability.
  • The LM3464MH/NOPB is rated for operation up to 150°C, but the device's performance and reliability may degrade at high temperatures. It's recommended to derate the output current and input voltage at high temperatures to ensure reliable operation.
  • The power dissipation can be calculated using the formula: Pd = (Vin - Vout) x Iout + (Vin x Iq), where Vin is the input voltage, Vout is the output voltage, Iout is the output current, and Iq is the quiescent current. The device's thermal resistance (θJA) should also be considered when calculating the junction temperature.
