Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general guidelines for switching regulator layouts, such as keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing trace lengths and widths.
The selection of the inductor depends on the specific requirements of your application, such as the input voltage, output voltage, and output current. Texas Instruments provides a list of recommended inductors in the datasheet, but you can also use online inductor selection tools or consult with a TI representative for guidance.
The maximum ambient temperature rating for the LM3477AMMX/NOPB is 85°C, but the device can operate up to 125°C with derating. It's essential to consider the thermal design and heat sinking requirements to ensure reliable operation.
Yes, the LM3477AMMX/NOPB is qualified for automotive and high-reliability applications. It meets the requirements of the AEC-Q100 standard and is suitable for use in harsh environments. However, it's essential to follow the recommended design and testing guidelines to ensure compliance with the specific requirements of your application.
Troubleshooting issues with the LM3477AMMX/NOPB requires a systematic approach. Start by verifying the PCB layout and component selection, then check the input and output voltage levels, and finally, use oscilloscope measurements to identify any signs of oscillation or instability. Texas Instruments also provides application notes and technical support resources to help with troubleshooting.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM3477AMMX/NOPB Overview

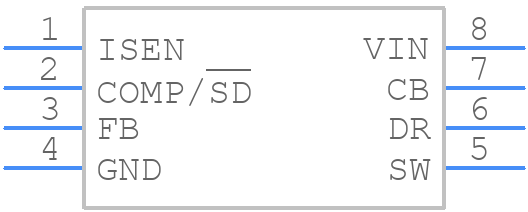

Use the download button to access the LM3477AMMX/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM347,
or try a keyword search, such as Switching Regulator or Controllers
