LM34922MYX/NOPB - Texas Instruments

Description: Conv DC-DC 6V to 28V Step Down Single-Out 2.51V 2A 10-Pin HVSSOP EP T/R

Download LM34922MYX/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

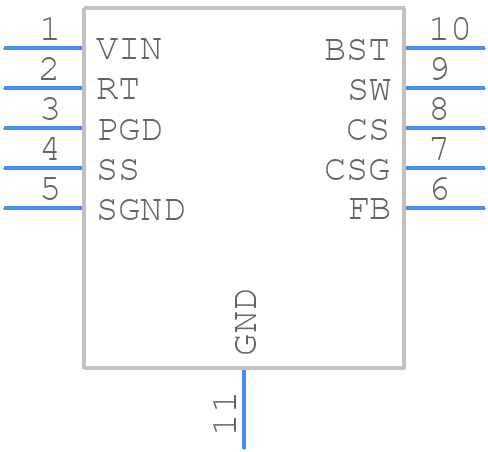

LM34922MYX/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LM34922MYX/NOPB - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DGQ0010A_2020
click to zoom
3D Models
LM34922MYX/NOPB - Texas Instruments - 3D model - Small Outline Packages - DGQ0010A_2020
click to zoom

LM34922MYX/NOPB Details

  • Manufacturer Part Number:

    LM34922MYX/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT/VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    28 V

  • Input Voltage-Min:

    6 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    2 A

  • Output Voltage-Max:

    24 V

  • Output Voltage-Min:

    2.51 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP10,.19,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.09 mm

  • Supply Current-Max (Isup):

    1.6 mA

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    1000 kHz

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LM34922MYX/NOPB Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the LM34922 datasheet, which includes a thermal pad connected to a large copper area on the PCB to dissipate heat. Additionally, it's recommended to use a 4-layer PCB with a solid ground plane to reduce thermal resistance.
  • To ensure stability, follow the recommended component values and PCB layout in the datasheet. Additionally, make sure to decouple the input and output with capacitors, and use a low-ESR output capacitor. Also, ensure that the feedback network is properly compensated to prevent oscillation.
  • The maximum input voltage for the LM34922 is 42V, but it's recommended to operate the device within the specified input voltage range of 6V to 36V for optimal performance and reliability.
  • The LM34922 is rated for operation up to 125°C, but the device's performance and reliability may degrade at high temperatures. It's recommended to derate the output current and ensure proper thermal management to prevent overheating.
  • Use an oscilloscope to monitor the output voltage and current, and check for any signs of oscillation or instability. Verify that the input voltage and output load are within the specified ranges, and check the PCB layout for any errors or omissions. Consult the datasheet and application notes for troubleshooting guidelines.
