SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Screening Level:
AEC-Q100
Seated Height-Max:
1.1 mm
Supply Current-Max:
5.2 mA
Supply Voltage-Max:
60 V
Supply Voltage-Min:
4.5 V
Supply Voltage-Nom:
12 V
Supply Voltage1-Max:
60 V
Supply Voltage1-Min:
4.5 V
Supply Voltage1-Nom:
12 V
Surface Mount:
YES
Technology:
BICMOS
Temperature Grade:
AUTOMOTIVE
Terminal Finish:
Matte Tin (Sn)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
4.4 mm
fmax-Min:
1 MHz
LM3492QMH/NOPB Frequently Asked Questions (FAQs)
A good PCB layout for the LM3492QMH/NOPB involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the traces between the IC and the capacitors. Additionally, it's recommended to use a separate analog ground plane and to keep the power traces away from the analog signals.
To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Additionally, ensure that the input and output capacitors are of high quality and have low ESR. It's also important to decouple the input voltage with a capacitor and to use a low-impedance output capacitor.
The LM3492QMH/NOPB has an operating temperature range of -40°C to 150°C. However, the maximum ambient temperature range depends on the specific application and the thermal design of the system. It's recommended to consult the thermal design guidelines in the datasheet and to perform thermal simulations to ensure the device operates within a safe temperature range.
Yes, the LM3492QMH/NOPB is qualified for automotive and high-reliability applications. It's manufactured using a high-reliability process and is designed to meet the stringent requirements of the automotive industry. However, it's recommended to consult the specific requirements of the application and to perform additional testing and validation as needed.
To troubleshoot issues with the LM3492QMH/NOPB, start by checking the input voltage, output voltage, and current. Verify that the component values and PCB layout meet the recommended guidelines. Check for signs of overheating, such as excessive temperature rise or thermal shutdown. Use an oscilloscope to check for oscillations or noise on the output. Consult the datasheet and application notes for troubleshooting guidelines and seek support from Texas Instruments or a qualified engineer if needed.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM3492QMH/NOPB Overview

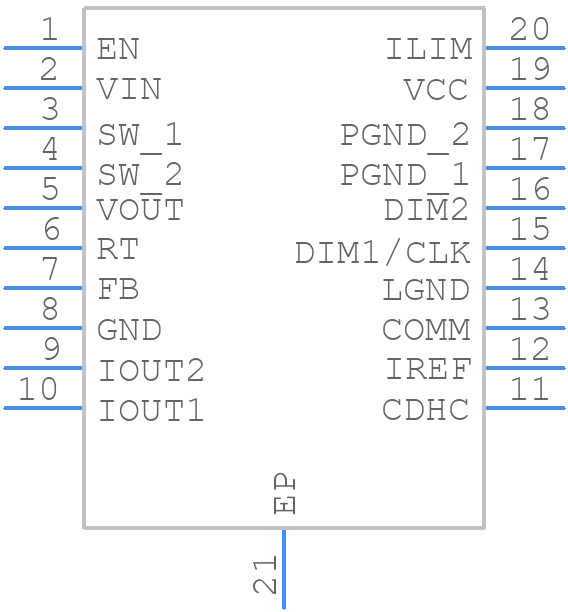

Use the download button to access the LM3492QMH/NOPB schematic symbol, PCB footprint, and 3D model.
