Texas Instruments provides a recommended PCB layout in the application note SLVAE04, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure reliable operation.
To ensure stability, follow the guidelines in the datasheet for component selection, particularly the output capacitor and feedback resistors. Additionally, ensure that the PCB layout is well-designed, with minimal parasitic inductance and capacitance, and that the input and output capacitors are placed close to the device.
While the datasheet specifies an operating temperature range of -40°C to 125°C, the maximum ambient temperature for reliable operation depends on the specific application and thermal design. As a general guideline, it's recommended to keep the junction temperature below 125°C to ensure reliable operation and minimize thermal stress.
Yes, the LM3495MTC/NOPB is qualified for automotive and high-reliability applications. Texas Instruments provides additional documentation, such as the Automotive Reliability Report and the Failure Mode Effects Analysis (FMEA) report, to support the use of this device in these applications.
Texas Instruments provides a troubleshooting guide in the application note SLVAE03, which covers common issues and their solutions. Additionally, engineers can use tools such as oscilloscopes and thermal imaging cameras to diagnose and debug issues with the device.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM3495MTC/NOPB Overview

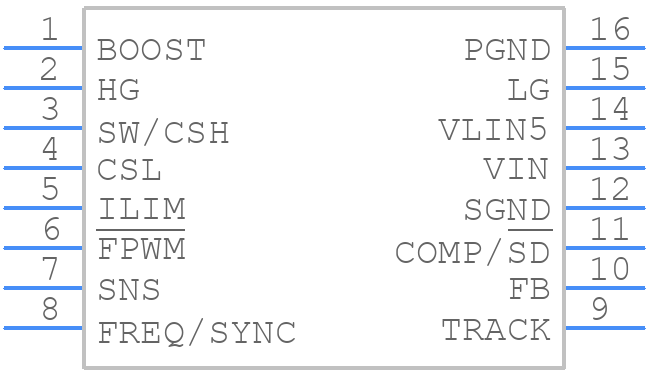

Use the download button to access the LM3495MTC/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM349,
or try a keyword search, such as Switching Regulator or Controllers
