Texas Instruments provides a recommended PCB layout in the LM3495 datasheet, which includes a thermal pad connected to a copper plane on the PCB to dissipate heat. Additionally, it's recommended to use a 2-ounce copper PCB and to keep the thermal pad away from other components to minimize thermal resistance.
To ensure reliable start-up, make sure the input voltage rises monotonically and does not droop during start-up. Also, ensure that the input capacitor is properly sized to filter out noise and provide sufficient energy storage. Finally, add a soft-start circuit to limit the inrush current and prevent voltage drops during start-up.
The LM3495 is rated for operation up to 125°C ambient temperature, but it's recommended to derate the device's power dissipation at higher temperatures to ensure reliable operation. Consult the datasheet for thermal derating curves and guidelines.
Yes, the LM3495 is qualified for automotive and high-reliability applications. It meets the requirements of the AEC-Q100 standard for automotive-grade devices and is suitable for use in harsh environments. However, it's essential to follow proper design and manufacturing guidelines to ensure the device meets the required reliability standards.
Start by checking the input voltage, output voltage, and current waveforms using an oscilloscope. Verify that the input voltage is within the recommended range and that the output voltage is within the specified tolerance. Check for signs of overheating, such as excessive temperature rise or thermal shutdown. Consult the datasheet and application notes for troubleshooting guidelines and common failure modes.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM3495MTCX/NOPB Overview

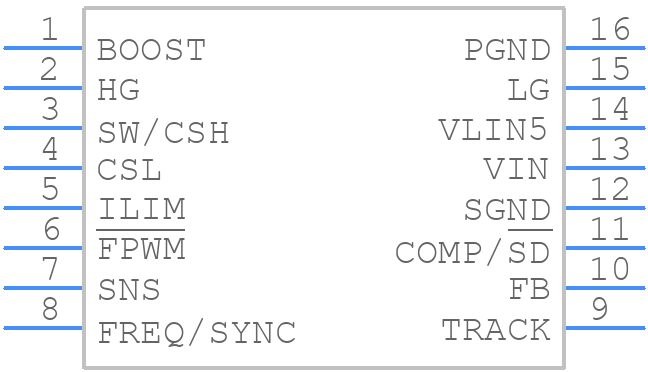

Use the download button to access the LM3495MTCX/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM349,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
