LM3501TL-16 - Texas Instruments

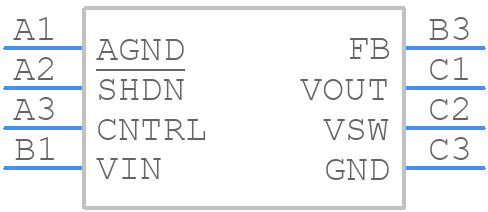

LM3501TL-16 Details

• Manufacturer Part Number:

  LM3501TL-16

• Pbfree Code:

  No

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  BGA

• Package Description:

  SMD-8

• Pin Count:

  8

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Manufacturer:

  Texas Instruments

• YTEOL:

  0

• Data Input Mode:

  SERIAL

• Input Characteristics:

  STANDARD

• Interface IC Type:

  LED DISPLAY DRIVER

• JESD-30 Code:

  S-PBGA-B8

• JESD-609 Code:

  e0

• Length:

  1.92 mm

• Moisture Sensitivity Level:

  1

• Multiplexed Display Capability:

  NO

• Number of Functions:

  1

• Number of Segments:

  6

• Number of Terminals:

  8

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• Output Characteristics:

  OPEN-DRAIN

• Output Polarity:

  TRUE

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  VFBGA

• Package Shape:

  SQUARE

• Package Style:

  GRID ARRAY, VERY THIN PROFILE, FINE PITCH

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  0.675 mm

• Supply Voltage-Max:

  7 V

• Supply Voltage-Min:

  2.7 V

• Supply Voltage-Nom:

  3 V

• Supply Voltage1-Max:

  7 V

• Supply Voltage1-Min:

  2.7 V

• Supply Voltage1-Nom:

  3 V

• Surface Mount:

  YES

• Technology:

  BICMOS

• Temperature Grade:

  AUTOMOTIVE

• Terminal Finish:

  Tin/Lead (Sn/Pb)

• Terminal Form:

  BALL

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  BOTTOM

• Width:

  1.92 mm
