- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for LM3524DN
- Part Number LM3524DN
- Manufacturer Texas Instruments
- Pin Count 16
- Part Category Integrated Circuit
- Package Category Dual-In-Line Packages

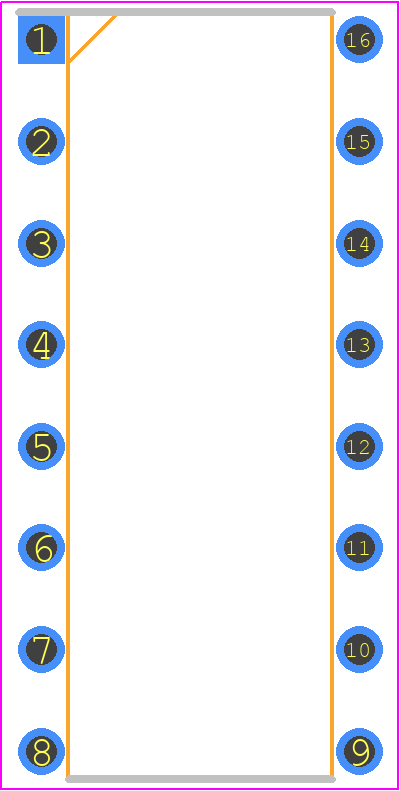

- Footprint Name Dual-In-Line Packages - NFG0016E (Inches)
- Released Date Oct 15, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
LM3524DN Details
-
Manufacturer Part Number:
LM3524DN
-
Brand Name:
Texas Instruments
-
Pbfree Code:
No
-
Part Life Cycle Code:
Obsolete
-
Part Package Code:
DIP
-
Package Description:
PLASTIC, DIP-16
-
Pin Count:
16
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.60
-
Manufacturer:
Texas Instruments
-
YTEOL:
0
LM3524DN Frequently Asked Questions (FAQs)
-
The maximum input voltage that can be applied to the LM3524DN is 40V, but it's recommended to keep it below 35V for reliable operation.
-
To ensure the LM3524DN operates within its SOA, make sure to keep the input voltage, output current, and junction temperature within the recommended limits. Also, ensure proper heat sinking and thermal management.
-
The bootstrap capacitor (CBOOT) is used to generate the high-side gate drive voltage for the internal power MOSFET. It's essential for proper operation and should be selected based on the input voltage and switching frequency.
-
Yes, the LM3524DN can be used in a synchronous rectification configuration, but it requires an external Schottky diode or a synchronous rectifier controller to control the low-side MOSFET.
-
The minimum input capacitance required for the LM3524DN can be calculated based on the input voltage, output current, and switching frequency. A general rule of thumb is to use a capacitance value of at least 10uF per ampere of output current.
Trust Checks
Community Provided
System Verified
Community Approved
LM3524DN Overview

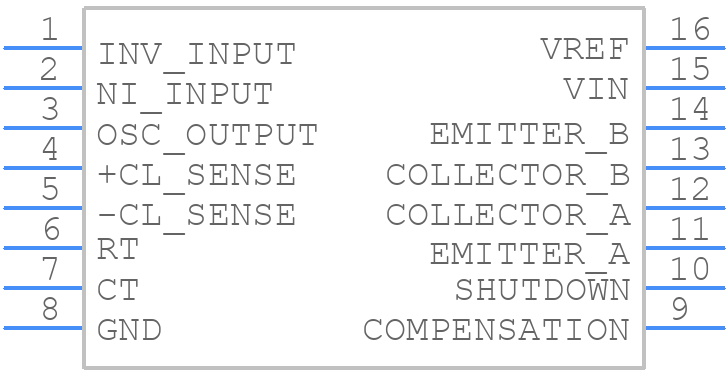

Use the download button to access the LM3524DN schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM352,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
