LM3530TMX-40/NOPB - Texas Instruments

Description: LED Driver 11 Segment 1350uA Supply Current 12-Pin DSBGA T/R

Download LM3530TMX-40/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

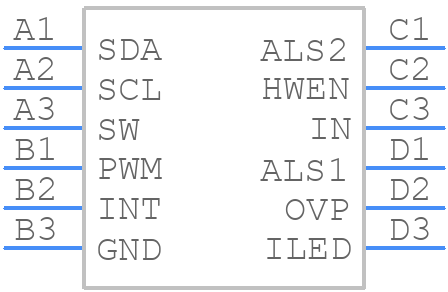

LM3530TMX-40/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LM3530TMX-40/NOPB - Texas Instruments PCB footprint - BGA - BGA - YFQ00012
click to zoom
3D Models
LM3530TMX-40/NOPB - Texas Instruments - 3D model - BGA - YFQ00012
click to zoom

LM3530TMX-40/NOPB Details

  • Manufacturer Part Number:

    LM3530TMX-40/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    VFBGA, BGA12,3X4,16

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Data Input Mode:

    SERIAL

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    R-PBGA-B12

  • JESD-609 Code:

    e1

  • Length:

    1.61 mm

  • Moisture Sensitivity Level:

    1

  • Multiplexed Display Capability:

    NO

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Segments:

    10

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA12,3X4,16

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.675 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.7 V

  • Supply Voltage-Nom:

    3.6 V

  • Supply Voltage1-Max:

    5.5 V

  • Supply Voltage1-Min:

    2.7 V

  • Supply Voltage1-Nom:

    3.6 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.21 mm

  • fmax-Min:

    0.5 MHz

LM3530TMX-40/NOPB Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout for the LM3530 in the datasheet, which includes a thermal pad connected to a large copper area on the PCB to dissipate heat. Additionally, it's recommended to use a 4-layer PCB with a solid ground plane and to minimize the distance between the device and the heat sink.
  • To ensure reliable start-up of the LM3530, it's recommended to use a soft-start circuit to limit the inrush current during power-up. This can be achieved by adding a resistor and capacitor in series between the input voltage and the VIN pin. Additionally, the input voltage should be ramped up slowly to prevent voltage spikes.
  • The maximum allowed voltage on the EN pin is 6V. Exceeding this voltage can cause damage to the device. It's recommended to use a voltage divider or a level shifter to ensure the EN pin voltage is within the specified range.
  • The LM3530 is rated for operation up to 125°C, but it's recommended to derate the output current and voltage as the temperature increases. Additionally, the device should be mounted on a heat sink to ensure reliable operation at high temperatures.
  • To troubleshoot oscillations or instability in the LM3530 circuit, check the PCB layout for any parasitic inductance or capacitance that may be causing the issue. Ensure that the input and output capacitors are of high quality and meet the recommended specifications. Also, check the feedback loop for any instability or noise that may be causing the oscillations.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LM3530TMX-40/NOPB Overview

Use the download button to access the LM3530TMX-40/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM353, or try a keyword search, such as Display Drivers

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
