Texas Instruments provides a recommended PCB layout for the LM3530UME-40B/NOPB in the datasheet, which includes a thermal pad connected to a large copper area on the PCB to dissipate heat. Additionally, it's recommended to use a 4-layer PCB with a solid ground plane to reduce thermal resistance.
To ensure reliable startup and shutdown, it's recommended to follow the startup and shutdown sequencing guidelines provided in the datasheet. This includes ensuring that the input voltage rises monotonically and that the enable pin is properly biased during startup and shutdown.
Operating the LM3530UME-40B/NOPB beyond the recommended operating conditions can lead to reduced reliability, decreased performance, and potentially even device failure. It's essential to ensure that the device operates within the recommended voltage, current, and temperature ranges to ensure optimal performance and reliability.
To troubleshoot issues with the output voltage regulation, check the input voltage, output load, and feedback network for any anomalies. Ensure that the feedback resistors are properly selected and that the output voltage is within the recommended range. Additionally, check for any signs of oscillation or instability in the output voltage.
The LM3530UME-40B/NOPB is designed to meet EMI and RFI requirements, but it's still essential to follow proper PCB layout and design practices to minimize EMI and RFI emissions. This includes using a solid ground plane, minimizing trace lengths, and using shielding and filtering components as needed.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM3530UME-40B/NOPB Overview

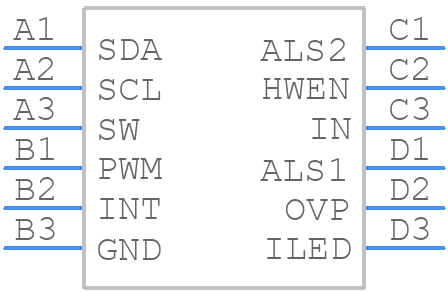

Use the download button to access the LM3530UME-40B/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM353,
or try a keyword search, such as Display Drivers
